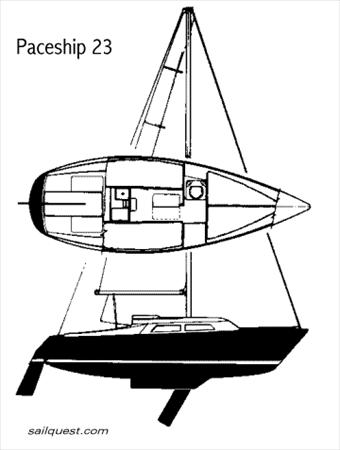

PACESHIP 23 / PY23
Description
L.O.A.: 22' 7" (6.88 m) L.W.L.: 19' 5" (5.92 m) Beam: 8' 0" (2.44 m) Draft: (fin) 3' 6"(1.06 m) Displacement: 2460 lbs. (1118 kg.) Ballast: 945 lbs. (430 kg.)
The standard boat dimensions
| i | 28 ft |
|---|---|
| j | 9.50 ft |
| p | 24 ft |
| e | 7.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 28 ft | 9.50 ft | 24 ft | 7.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 24 ft - (7315 mm) |
| Foot | * 7.5 ft - (2286 mm) |
| Leech-AftHdBd | * 24.73 ft - (7538 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 24.89 ft - (7586 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 92.97 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 21 ft - (6401 mm) |
| Foot | 10.33 ft - (3149 mm) |
| Leech | 17.5 ft - (5334 mm) |
| Percentage LP | * 90.32 % |
| Length Perpendicular | * 8.58 ft - (2615 mm) |
| Deck Angle | * 15.08 ° |
| Area | * 90.12 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 28.09 ft - (8562 mm) |
| Foot | * 15.45 ft - (4709 mm) |
| Leech | * 26.31 ft - (8019 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 14.25 ft - (4343 mm) |
| Deck Angle | * 4 ° |
| Area | * 200.13 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 29 ft - (8839 mm) |
| Foot | 16 ft - (4877 mm) |
| Leech | 26.75 ft - (8153 mm) |
| Perc LP | * 165 |
| Area | * 348 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 28.25 ft - (8611 mm) |
| Foot | 16 ft - (4877 mm) |
| Leech | 26.25 ft - (8001 mm) |
| Perc LP | * 154.11 |
| Length Perp | * 14.64 |
| Deck Angle | * 5.07 ° |
| Area | * 206.76 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 27.75 ft - (8458 mm) |
| Foot | 9.75 ft - (2972 mm) |
| Leech | 25.167 ft - (7671 mm) |
| Percentage LP | * 92.74 % |
| Length Perpendicular | * 8.81 ft - (2685 mm) |
| Deck Angle | * 6.62 ° |
| Area | * 122.25 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 27.5 ft - (8382 mm) |
| Foot | 13.25 ft - (4039 mm) |
| Leech | 25.75 ft - (7849 mm) |
| Percentage LP | * 129.68 % |
| Length Perpendicular | * 12.32 ft - (3755 mm) |
| Deck Angle | * 2.9 ° |
| Area | * 169.35 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 28.09 |
| MidGirth | * 17.1 ft - (5212 mm) |
| Foot | * 17.1 ft - (5212 mm) |
| Perc LP | * 180 |
| Area | * 408 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 29 ft - (8839 mm) |
| Foot | 17 ft - (5182 mm) |
| Leech | 27.5 ft - (8382 mm) |
| Perc LP | * 165 |
| Area | * 370 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 25.67 ft - (7824 mm) |
| Foot | 8.5 ft - (2591 mm) |
| Leech | 23 ft - (7010 mm) |
| Percentage LP | * 79.26 % |
| Length Perpendicular | * 7.53 ft - (2295 mm) |
| Deck Angle | * 8.86 ° |
| Area | * 96.68 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 14.42 ft - (4395 mm) |
| Foot | 8.25 ft - (2515 mm) |
| Leech | 12.083 ft - (3683 mm) |
| Perc LP | * 72.74 |
| Length Perp | * 6.91 |
| Deck Angle | * 14.38 ° |
| Area | * 49.82 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 27.5 ft - (8382 mm) |
| Foot | 10.5 ft - (3200 mm) |
| Leech | 25.25 ft - (7696 mm) |
| Percentage LP | * 101.47 % |
| Length Perpendicular | * 9.64 ft - (2938 mm) |
| Deck Angle | * 4.61 ° |
| Area | * 132.55 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 28 ft - (8534 mm) |
| Foot | 15.75 ft - (4801 mm) |
| Leech | 26.5 ft - (8077 mm) |
| Percentage LP | * 153.79 % |
| Length Perpendicular | * 14.61 ft - (4453 mm) |
| Deck Angle | * 3.22 ° |
| Area | * 204.5 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
