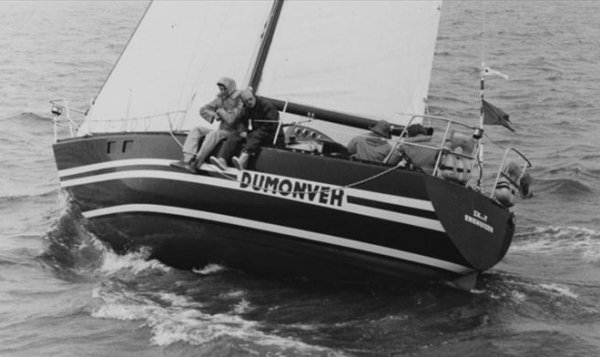

Orion 35
Description
The Orion 35 is a classic 34'6" (10.5 m) monohull sailboat designed by the legendary Sparkman & Stephens firm (design #2276) as an International Offshore Rule (IOR) 3/4-ton racer, sharing its hull molds with the similar Pari 34 and built by Orion Yacht-Artimus Corp. in the United States starting in 1978, though production was limited, making it a relatively rare find on the vintage market. Featuring a sleek, performance-oriented hull with a fin keel (standard draft 6'2" or shoal 4'6"), skeg-hung rudder for protected steering, raked stem, and reverse transom, it's constructed of solid fiberglass with balsa-cored decks for lightweight responsiveness, offering a hull speed of 7.3 knots and a low displacement/length ratio of 185 that classifies it as a "light racer" with good upwind performance and stability (48% ballast ratio)—ideal for coastal cruising or club racing, though its modest fuel capacity limits long-range motoring without upgrades. Rigged as a masthead sloop with aluminum spars and a sail area/displacement ratio of 17.9 (up to 21.6 with a 135% genoa), it sails briskly in light to moderate winds, faster than 66% of similar designs, while the interior accommodates 4–6 in a practical layout with V-berth forward, saloon settees, galley, and nav station, often finished with teak accents for cozy overnights.
Construction Details
| Designer | Sparkman and Stephens |
|---|---|
| Builder | Orion Yacht-Artimus Corp. |
| Length | 35.000 ft |
| LOA | 32.810 ft |
| LWL | 27.230 ft |
| Beam | 10.830 ft |
| Displacement | 11751 lb |
| Max Draft | 6.170 ft |
The standard boat dimensions
| i | 44 ft |
|---|---|
| j | 14 ft |
| p | 39.42 ft |
| e | 10.43 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 44 ft | 14 ft | 39.42 ft | 10.43 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 39.42 ft - (12015 mm) |
| Foot | * 10.43 ft - (3179 mm) |
| Leech | * 40.32 ft - (12290 mm) |
| Tack Angle | * 87.98 ° |
| Diagonal | * 40.42 ft - (12320 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | 205.37 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 36.94 ft - (11259 mm) |
| Foot | * 18.53 ft - (5648 mm) |
| Leech | * 32.1 ft - (9784 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 16.1 ft - (4907 mm) |
| Deck Angle | * 12 ° |
| Area | 297.4 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 43.86 ft - (13369 mm) |
| Foot | * 22.59 ft - (6885 mm) |
| Leech | * 41.27 ft - (12579 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 21 ft - (6401 mm) |
| Deck Angle | * 4 ° |
| Area | 460.48 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 43.86 ft - (13369 mm) |
| MidGirth | * 25.2 ft - (7681 mm) |
| Foot | * 25.2 ft - (7681 mm) |
| Perc LP | * 180 % |
| Area | 939.48 ft² |
