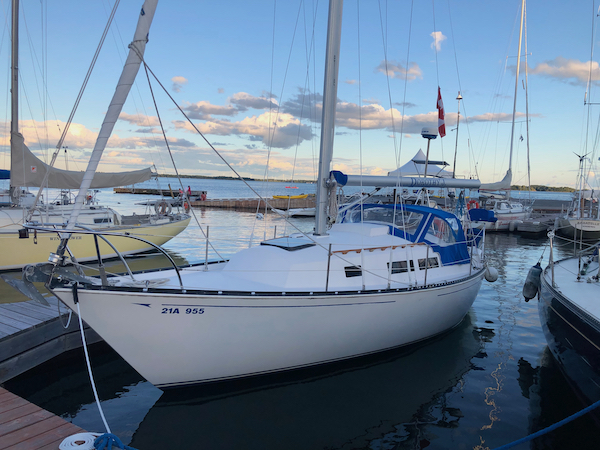

ONTARIO 32
Description
L.W.L.: 26' 6" (8.08 m) Beam: 11' 0" (3.35 m) Draft: 4' 6" (1.37 m) Displacement: 9800 lbs. (4445 kg.) Ballast: 3977 lbs. (1803 kg.)
Construction Details
| Designer | Cuthbertson and Cassian |
|---|---|
| Length | 32.000 ft |
| LOA | 28.580 ft |
| LWL | 22.000 ft |
| Beam | 10.000 ft |
| Displacement | 6800 lb |
| Max Draft | 4.000 ft |
The standard boat dimensions
| i | 40 ft |
|---|---|
| j | 13 ft |
| p | 34 ft |
| e | 13 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 40 ft | 13 ft | 34 ft | 13 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 34 ft - (10363 mm) |
| Foot | * 13 ft - (3962 mm) |
| Leech-AftHdBd | * 35.63 ft - (10860 mm) |
| Tack Ang | * 87.98 ° |
| Diag (clew/head) | * 35.97 ft - (10964 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 227.42 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 33.65 ft - (10257 mm) |
| Foot | * 17.26 ft - (5261 mm) |
| Leech | * 29.15 ft - (8885 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 14.95 ft - (4557 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 251.54 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 39.96 ft - (12180 mm) |
| Foot | * 21.03 ft - (6410 mm) |
| Leech | * 37.55 ft - (11445 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 19.5 ft - (5944 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 389.64 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 39.96 ft - (12180 mm) |
| MidGirth | * 23.4 ft - (7132 mm) |
| Foot | * 23.4 ft - (7132 mm) |
| Perc LP | * 180 |
| Area | * 795 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 40 ft - (12192 mm) |
| Foot | 22 ft - (6706 mm) |
| Leech | 38 ft - (11582 mm) |
| Perc LP | * 165 |
| Area | * 660 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 39.96 ft - (12180 mm) |
| Foot | * 21.79 ft - (6642 mm) |
| Leech | * 37.53 ft - (11439 mm) |
| Percentage LP | 155 % |
| Length Perpendicular | * 20.15 ft - (6142 mm) |
| Deck Angle | * 4.38 ° |
| Area | * 402.57 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 38.75 ft - (11811 mm) |
| Foot | 18.75 ft - (5715 mm) |
| Leech | 36.5 ft - (11125 mm) |
| Percentage LP | * 134.62 % |
| Length Perpendicular | * 17.5 ft - (5334 mm) |
| Deck Angle | * 3 ° |
| Area | * 339.14 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 39 ft - (11887 mm) |
| Foot | * 15.8 ft - (4816 mm) |
| Leech | * 35.31 ft - (10762 mm) |
| Percentage LP | 110 % |
| Length Perpendicular | * 14.3 ft - (4359 mm) |
| Deck Angle | * 7.15 ° |
| Area | * 278.88 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 37 ft - (11278 mm) |
| Foot | 18.5 ft - (5639 mm) |
| Leech | 34 ft - (10363 mm) |
| Percentage LP | * 130.08 % |
| Length Perpendicular | * 16.91 ft - (5154 mm) |
| Deck Angle | * 5.92 ° |
| Area | * 312.84 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 38.5 ft - (11735 mm) |
| Foot | 21.083 ft - (6426 mm) |
| Leech | 36.25 ft - (11049 mm) |
| Percentage LP | * 150.15 % |
| Length Perpendicular | * 19.52 ft - (5950 mm) |
| Deck Angle | * 4.17 ° |
| Area | * 375.83 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 38 ft - (11582 mm) |
| Foot | 13.5 ft - (4115 mm) |
| Leech | 33.5 ft - (10211 mm) |
| Percentage LP | * 90.46 % |
| Length Perpendicular | * 11.76 ft - (3584 mm) |
| Deck Angle | * 11.42 ° |
| Area | * 223.42 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
