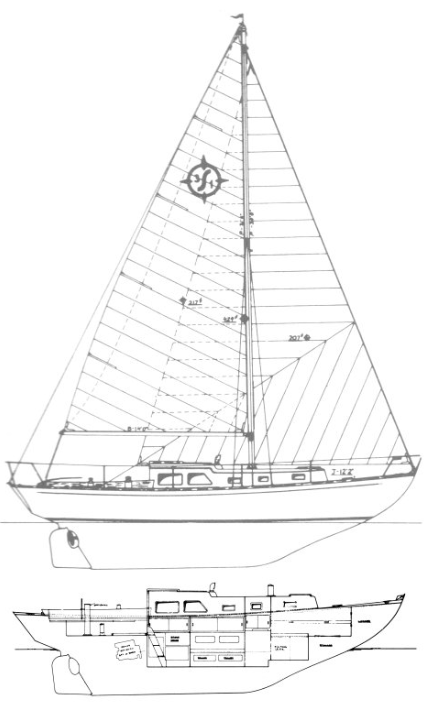

OFFSHORE 31 SLOOP BY CHEOY LEE
Description
The OFFSHORE 31 SLOOP BY CHEOY LEE is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 31.000 ft |
The standard boat dimensions
| i | 33 ft |
|---|---|
| j | 12 ft |
| p | 30 ft |
| e | 13.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 33 ft | 12 ft | 30 ft | 13.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 33.36 ft - (10168 mm) |
| MidGirth | * 21.6 ft - (6584 mm) |
| Foot | * 21.6 ft - (6584 mm) |
| Perc LP | * 180 |
| Area | 612.49 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 30 ft - (9144 mm) |
| Foot | * 13.5 ft - (4115 mm) |
| Leech-AftHdBd | * 32.27 ft - (9836 mm) |
| Tack Ang | * 88.02 ° |
| Diag (clew/head) | * 32.47 ft - (9897 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 202.24 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 33.36 ft - (10168 mm) |
| Foot | * 19.7 ft - (6005 mm) |
| Leech | * 31.09 ft - (9476 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18 ft - (5486 mm) |
| Deck Angle | * 4 ° |
| Area | 300.21 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 28.09 ft - (8562 mm) |
| Foot | * 16.27 ft - (4959 mm) |
| Leech | * 23.87 ft - (7276 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.8 ft - (4206 mm) |
| Deck Angle | * 12 ° |
| Area | 193.85 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
