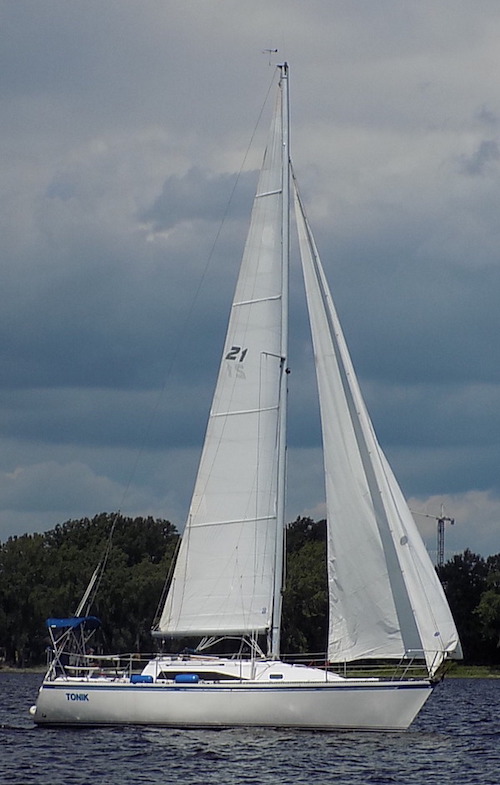

Odyssey 30
Description
The Odyssey 30 is a small sailboat designed by Carl Alberg. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Carl Alberg |
|---|---|
| Length | 30.000 ft |
| LOA | 22.000 ft |
| LWL | 17.500 ft |
| Beam | 7.700 ft |
| Displacement | 2500 lb |
| Max Draft | 4.300 ft |
The standard boat dimensions
| i | 34.92 ft |
|---|---|
| j | 10.75 ft |
| p | 31.83 ft |
| e | 12.08 ft |
| p2 | 14.42 ft |
| e2 | 6.13 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 34.92 ft | 10.75 ft | 31.83 ft | 12.08 ft | 14.42 ft | 6.13 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 31.83 ft - (9702 mm) |
| Foot | * 12.08 ft - (3682 mm) |
| Leech-AftHdBd | * 33.41 ft - (10183 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 33.65 ft - (10257 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 198.27 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 34.71 ft - (10580 mm) |
| Foot | * 17.28 ft - (5267 mm) |
| Leech | * 32.73 ft - (9976 mm) |
| Percentage LP | * 149.95 % |
| Length Perpendicular | * 16.12 ft - (4913 mm) |
| Deck Angle | * 4 ° |
| Area | * 279.76 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.23 ft - (8909 mm) |
| Foot | * 14.15 ft - (4313 mm) |
| Leech | * 25.53 ft - (7782 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 12.36 ft - (3767 mm) |
| Deck Angle | * 12.03 ° |
| Area | * 180.62 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 35.5 ft - (10820 mm) |
| Foot | 18 ft - (5486 mm) |
| Leech | 33 ft - (10058 mm) |
| Perc LP | * 165 |
| Area | * 479 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 20.1 ft - (6126 mm) |
| Foot | * 7.98 ft - (2432 mm) |
| Leech | * 16.7 ft - (5090 mm) |
| Perc LP | * 60 |
| Length Perp | * 6.45 |
| Deck Angle | * 18.94 ° |
| Area | * 64.84 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 14.42 ft - (4395 mm) |
| Foot | * 6.12 ft - (1865 mm) |
| Leech-AftHdBd | * 15.32 ft - (4670 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 15.47 ft - (4715 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 46.03 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
