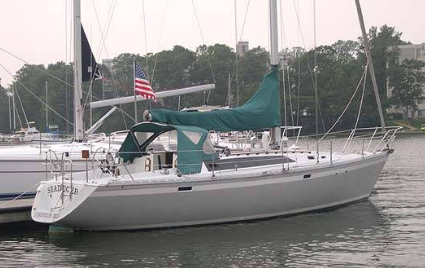

O'Day 40 Hull 135-
Description
18000 lbs Disp. 6600 lbs Ballast 33'6" LWL 6'4" Draft deep 4'11" Draft Shoal 57' Mast Height above DWL
Construction Details
| Designer | C. Raymond Hunt |
|---|---|
| Length | 39.580 ft |
| LOA | 39.580 ft |
| LWL | 33.500 ft |
| Beam | 12.600 ft |
| Displacement | 18500 lb |
| Max Draft | 6.330 ft |
The standard boat dimensions
| i | 52 ft |
|---|---|
| j | 15.25 ft |
| p | 46 ft |
| e | 13.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 52 ft | 15.25 ft | 46 ft | 13.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 53 ft - (16154 mm) |
| Foot | 26 ft - (7925 mm) |
| Leech | 50 ft - (15240 mm) |
| Perc LP | * 165 |
| Area | * 1034 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 51.48 ft - (15691 mm) |
| Foot | * 25.32 ft - (7718 mm) |
| Leech | * 46.63 ft - (14213 mm) |
| Perc LP | * 150.03 |
| Length Perp | * 22.88 |
| Deck Angle | * 9.02 ° |
| Area | * 588.89 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 50.75 ft - (15469 mm) |
| Foot | 22.75 ft - (6934 mm) |
| Leech | 48 ft - (14630 mm) |
| Percentage LP | * 140.2 % |
| Length Perpendicular | * 21.38 ft - (6517 mm) |
| Deck Angle | * 3.64 ° |
| Area | * 542.53 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 51.48 ft - (15691 mm) |
| Foot | * 24.4 ft - (7437 mm) |
| Leech | * 48.71 ft - (14847 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 22.88 ft - (6974 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 588.93 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 50.75 ft - (15469 mm) |
| Foot | 22 ft - (6706 mm) |
| Leech | 48 ft - (14630 mm) |
| Percentage LP | * 135.74 % |
| Length Perpendicular | * 20.7 ft - (6309 mm) |
| Deck Angle | * 3.43 ° |
| Area | * 525.32 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 43.35 ft - (13213 mm) |
| Foot | * 19.93 ft - (6075 mm) |
| Leech | * 38.16 ft - (11631 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 17.54 ft - (5346 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 380.21 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 46 ft - (14021 mm) |
| Foot | * 13.25 ft - (4039 mm) |
| Leech-AftHdBd | * 47.15 ft - (14371 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 47.42 ft - (14454 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 314.51 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 51.48 |
| MidGirth | * 27.45 ft - (8367 mm) |
| Foot | * 27.45 ft - (8367 mm) |
| Perc LP | * 180 |
| Area | * 1201 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 29.8 ft - (9083 mm) |
| Foot | * 11.22 ft - (3420 mm) |
| Leech | * 25.04 ft - (7632 mm) |
| Perc LP | * 60 |
| Length Perp | * 9.15 |
| Deck Angle | * 19.01 ° |
| Area | * 136.35 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
