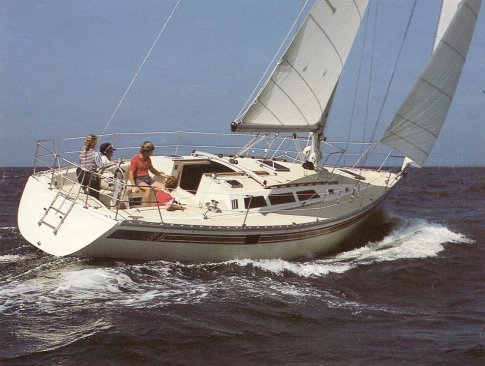

O'DAY 39
Description
The O'DAY 39 is a cruising yacht designed by Philippe Briand. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Philippe Briand |
|---|---|
| Length | 39.000 ft |
| LOA | 38.580 ft |
| LWL | 33.500 ft |
| Beam | 12.580 ft |
| Displacement | 18000 lb |
| Max Draft | 6.330 ft |
The standard boat dimensions
| i | 50.02 ft |
|---|---|
| j | 14.10 ft |
| p | 44.28 ft |
| e | 14.17 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 50.02 ft | 14.10 ft | 44.28 ft | 14.17 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 49.37 ft - (15048 mm) |
| Foot | * 23.26 ft - (7090 mm) |
| Leech | * 45.42 ft - (13844 mm) |
| Perc LP | * 165 |
| Area | * 861 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 28.58 ft - (8711 mm) |
| Foot | * 10.3 ft - (3139 mm) |
| Leech | * 24.23 ft - (7385 mm) |
| Perc LP | * 60 |
| Length Perp | * 8.46 |
| Deck Angle | * 19.03 ° |
| Area | * 120.9 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 48 ft - (14630 mm) |
| Foot | 21 ft - (6401 mm) |
| Leech | 45.5 ft - (13868 mm) |
| Percentage LP | * 140.35 % |
| Length Perpendicular | * 19.79 ft - (6032 mm) |
| Deck Angle | * 3.81 ° |
| Area | * 474.93 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 49.37 ft - (15048 mm) |
| MidGirth | * 25.38 ft - (7736 mm) |
| Foot | * 25.38 ft - (7736 mm) |
| Perc LP | * 180 |
| Area | * 1065 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 44.28 ft - (13497 mm) |
| Foot | * 14.17 ft - (4319 mm) |
| Leech-AftHdBd | * 45.75 ft - (13945 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 46.02 ft - (14027 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 323.18 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 49.37 ft - (15048 mm) |
| Foot | * 22.47 ft - (6849 mm) |
| Leech | * 46.83 ft - (14274 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 21.15 ft - (6447 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 522.09 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 41.58 ft - (12674 mm) |
| Foot | * 18.32 ft - (5584 mm) |
| Leech | * 36.81 ft - (11220 mm) |
| Percentage LP | * 114.96 % |
| Length Perpendicular | * 16.21 ft - (4941 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 337.04 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
