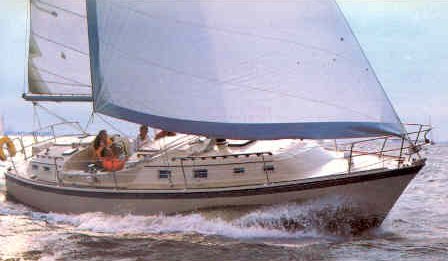

O'Day 37
Description
The O'DAY 37 is a cruising yacht designed by John Deknatel. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | John Deknatel |
|---|---|
| Length | 37.000 ft |
| LOA | 37.000 ft |
| LWL | 30.330 ft |
| Beam | 11.330 ft |
| Displacement | 14000 lb |
| Max Draft | 5.000 ft |
The standard boat dimensions
| i | 42.50 ft |
|---|---|
| j | 15.50 ft |
| p | 36.50 ft |
| e | 14.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 42.50 ft | 15.50 ft | 36.50 ft | 14.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| 23 | * 36.5 |
| 10 | * 14.5 |
| 24.55 | * 38.52 |
| 88 | * 88 |
| 24.76 | * 38.8 |
| 4.5 | * 6 |
| 118.76 | * 272.47 |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 36.19 ft - (11031 mm) |
| Foot | * 21.04 ft - (6413 mm) |
| Leech | * 30.72 ft - (9363 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 17.83 ft - (5435 mm) |
| Deck Angle | * 12.04 ° |
| Area | * 322.61 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 41.75 ft - (12725 mm) |
| Foot | 21.167 ft - (6452 mm) |
| Leech | 38.5 ft - (11735 mm) |
| Percentage LP | * 125.1 % |
| Length Perpendicular | * 19.39 ft - (5910 mm) |
| Deck Angle | * 3.61 ° |
| Area | * 404.77 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 42.98 ft - (13100 mm) |
| Foot | * 25.46 ft - (7760 mm) |
| Leech | * 40.05 ft - (12207 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 23.25 ft - (7087 mm) |
| Deck Angle | * 4 ° |
| Area | * 499.68 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 41.75 ft - (12725 mm) |
| Foot | 22 ft - (6706 mm) |
| Leech | 38.67 ft - (11787 mm) |
| Percentage LP | * 130.19 % |
| Length Perpendicular | * 20.18 ft - (6151 mm) |
| Deck Angle | * 3.44 ° |
| Area | * 421.25 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 43 ft - (13106 mm) |
| Foot | 26 ft - (7925 mm) |
| Leech | 41 ft - (12497 mm) |
| Perc LP | * 165 % |
| Area | * 838 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
