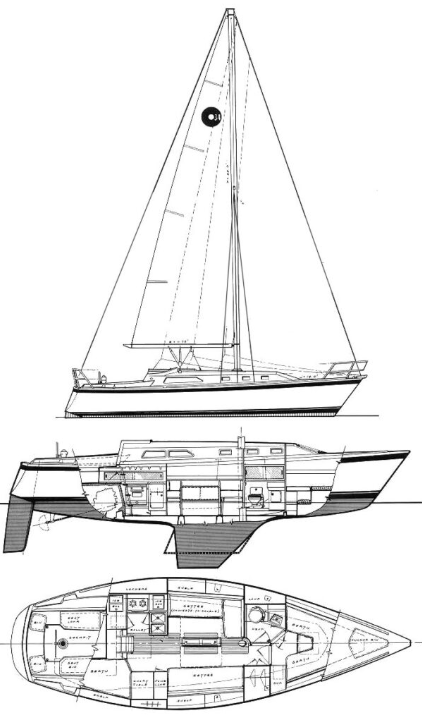

O'DAY 34 TALL RIG
Description
The O'DAY 34 TALL RIG is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 34.000 ft |
The standard boat dimensions
| i | 45.83 ft |
|---|---|
| j | 14 ft |
| p | 40.75 ft |
| e | 13.66 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 45.83 ft | 14 ft | 40.75 ft | 13.66 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 46 ft - (14021 mm) |
| Foot | 24 ft - (7315 mm) |
| Leech | 43 ft - (13106 mm) |
| Perc LP | * 165 |
| Area | * 828 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 44.5 ft - (13564 mm) |
| Foot | 23 ft - (7010 mm) |
| Leech | 42.75 ft - (13030 mm) |
| Percentage LP | * 154.93 % |
| Length Perpendicular | * 21.69 ft - (6611 mm) |
| Deck Angle | * 2.47 ° |
| Area | * 482.54 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 40.75 ft - (12421 mm) |
| Foot | * 13.66 ft - (4164 mm) |
| Leech-AftHdBd | * 42.25 ft - (12878 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 42.52 ft - (12960 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 287.07 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 45.52 ft - (13874 mm) |
| Foot | * 22.49 ft - (6855 mm) |
| Leech | * 42.95 ft - (13091 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 21 ft - (6401 mm) |
| Deck Angle | * 4 ° |
| Area | * 477.93 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 38.34 ft - (11686 mm) |
| Foot | * 18.4 ft - (5608 mm) |
| Leech | * 33.55 ft - (10226 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 16.1 ft - (4907 mm) |
| Deck Angle | * 11.96 ° |
| Area | * 308.66 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 45.52 ft - (13874 mm) |
| MidGirth | * 25.2 ft - (7681 mm) |
| Foot | * 25.2 ft - (7681 mm) |
| Perc LP | * 180 |
| Area | * 975 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
