O'Day 34
Description

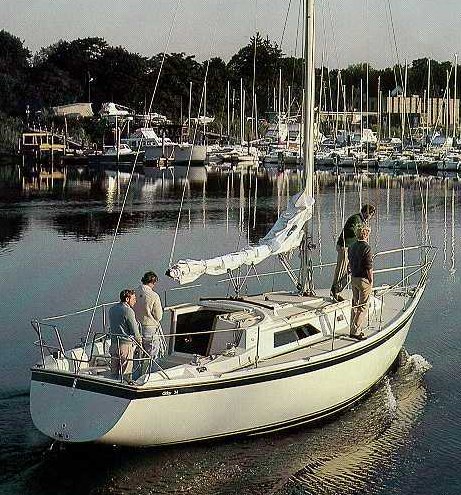

The O'DAY 34 is a mid-sized cruiser designed by John Deknatel. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | John Deknatel |
|---|---|
| Length | 34.000 ft |
| LOA | 34.000 ft |
| LWL | 28.750 ft |
| Beam | 11.250 ft |
| Displacement | 11500 lb |
| Max Draft | 5.580 ft |
The standard boat dimensions
| i | 43 ft |
|---|---|
| j | 14 ft |
| p | 38 ft |
| e | 11.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 43 ft | 14 ft | 38 ft | 11.75 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| 23 | * 38 |
| 10 | * 11.75 |
| 24.55 | * 39.14 |
| 88 | * 88 |
| 24.76 | * 39.38 |
| 4.5 | * 5.25 |
| 118.76 | * 230.29 |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 41.25 ft - (12573 mm) |
| Foot | 16.5 ft - (5029 mm) |
| Leech | 38.5 ft - (11735 mm) |
| Percentage LP | * 109.93 % |
| Length Perpendicular | * 15.39 ft - (4691 mm) |
| Deck Angle | * 3.13 ° |
| Area | * 317.35 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 38.5 ft - (11735 mm) |
| Foot | 17 ft - (5182 mm) |
| Leech | 34.83 ft - (10616 mm) |
| Percentage LP | * 109.86 % |
| Length Perpendicular | * 15.38 ft - (4688 mm) |
| Deck Angle | * 7.2 ° |
| Area | * 296.01 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 39 ft - (11887 mm) |
| Foot | 18.5 ft - (5639 mm) |
| Leech | 35.5 ft - (10820 mm) |
| Percentage LP | * 120.07 % |
| Length Perpendicular | * 16.81 ft - (5124 mm) |
| Deck Angle | * 6.67 ° |
| Area | * 327.74 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 43.75 ft - (13335 mm) |
| Foot | 17.5 ft - (5334 mm) |
| Leech | 40.5 ft - (12344 mm) |
| Percentage LP | * 115.71 % |
| Length Perpendicular | * 16.2 ft - (4938 mm) |
| Deck Angle | * 4.23 ° |
| Area | * 354.28 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 42 ft - (12802 mm) |
| Foot | 22.67 ft - (6910 mm) |
| Leech | 39.5 ft - (12040 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 21 ft - (6401 mm) |
| Deck Angle | * 4.11 ° |
| Area | * 440.97 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 42.92 ft - (13082 mm) |
| Foot | 22.5 ft - (6858 mm) |
| Leech | 40.67 ft - (12396 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 21 ft - (6401 mm) |
| Deck Angle | * 3.03 ° |
| Area | * 450.57 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 42 ft - (12802 mm) |
| Foot | 21.33 ft - (6501 mm) |
| Leech | 39 ft - (11887 mm) |
| Percentage LP | * 140.36 % |
| Length Perpendicular | * 19.65 ft - (5989 mm) |
| Deck Angle | * 4.89 ° |
| Area | * 412.55 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 41.75 ft - (12725 mm) |
| Foot | 19.75 ft - (6020 mm) |
| Leech | 38.75 ft - (11811 mm) |
| Percentage LP | * 130.29 % |
| Length Perpendicular | * 18.24 ft - (5560 mm) |
| Deck Angle | * 4.48 ° |
| Area | * 380.85 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 42.96 ft - (13094 mm) |
| Foot | * 23.1 ft - (7041 mm) |
| Leech | * 39.52 ft - (12046 mm) |
| Perc LP | * 165 % |
| Area | * 744 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 42.96 ft - (13094 mm) |
| MidGirth | * 25.2 ft - (7681 mm) |
| Foot | * 25.2 ft - (7681 mm) |
| Perc LP | * 180 % |
| Area | * 920 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 24.87 ft - (7580 mm) |
| Foot | * 10.52 ft - (3206 mm) |
| Leech | 19 ft - (5791 mm) |
| Perc LP | * 53.43 % |
| Length Perp | * 7.48 ft - (2280 mm) |
| Deck Angle | * 26.69 ° |
| Area | * 92.95 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
