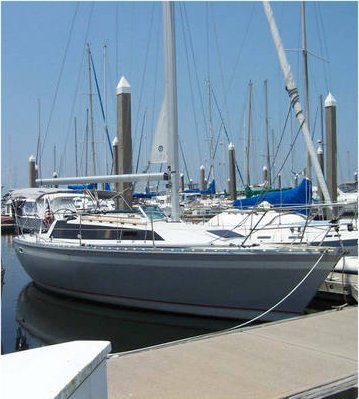

O'Day 322
Description
The O'DAY 322 is a mid-sized cruiser designed by C. Raymond Hunt. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | C. Raymond Hunt |
|---|---|
| Length | 32.000 ft |
| LOA | 32.080 ft |
| LWL | 26.670 ft |
| Beam | 10.670 ft |
| Displacement | 10250 lb |
| Max Draft | 4.160 ft |
The standard boat dimensions
| i | 38.50 ft |
|---|---|
| j | 12.25 ft |
| p | 33.25 ft |
| e | 13.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 38.50 ft | 12.25 ft | 33.25 ft | 13.75 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 39 ft - (11887 mm) |
| Foot | 21 ft - (6401 mm) |
| Leech | 36.5 ft - (11125 mm) |
| Perc LP | * 165 |
| Area | * 614 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 38.38 ft - (11698 mm) |
| Foot | * 20.56 ft - (6267 mm) |
| Leech | * 34.47 ft - (10506 mm) |
| Perc LP | * 150.04 |
| Length Perp | * 18.38 |
| Deck Angle | * 8.99 ° |
| Area | * 352.67 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 38.38 ft - (11698 mm) |
| Foot | * 19.76 ft - (6023 mm) |
| Leech | * 36.12 ft - (11009 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 18.37 ft - (5599 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 352.52 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 37 ft - (11278 mm) |
| Foot | 17.75 ft - (5410 mm) |
| Leech | 35 ft - (10668 mm) |
| Percentage LP | * 135.76 % |
| Length Perpendicular | * 16.63 ft - (5069 mm) |
| Deck Angle | * 2.81 ° |
| Area | * 307.67 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 32.32 ft - (9851 mm) |
| Foot | * 16.21 ft - (4941 mm) |
| Leech | * 28.09 ft - (8562 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 14.09 ft - (4295 mm) |
| Deck Angle | * 12 ° |
| Area | * 227.66 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 37 ft - (11278 mm) |
| Foot | 14 ft - (4267 mm) |
| Leech | 33.67 ft - (10263 mm) |
| Percentage LP | * 103.92 % |
| Length Perpendicular | * 12.73 ft - (3880 mm) |
| Deck Angle | * 6.95 ° |
| Area | * 235.48 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 33.25 ft - (10135 mm) |
| Foot | * 13.75 ft - (4191 mm) |
| Leech-AftHdBd | * 35.25 ft - (10744 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 35.53 ft - (10830 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 235.78 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 38.38 |
| MidGirth | * 22.05 ft - (6721 mm) |
| Foot | * 22.05 ft - (6721 mm) |
| Perc LP | * 180 |
| Area | * 719 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 22.22 ft - (6773 mm) |
| Foot | * 9.16 ft - (2792 mm) |
| Leech | * 18.29 ft - (5575 mm) |
| Perc LP | * 60 |
| Length Perp | * 7.35 |
| Deck Angle | * 19.02 ° |
| Area | * 81.63 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
