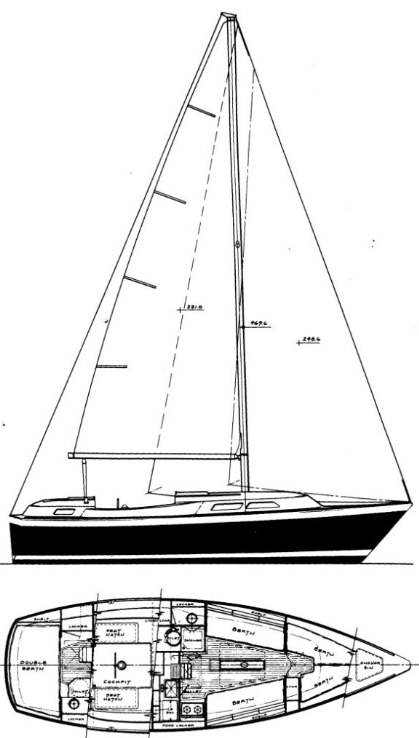

O'DAY 32 SLOOP
Description
The O'DAY 32 SLOOP is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 32.000 ft |
The standard boat dimensions
| i | 39 ft |
|---|---|
| j | 12.75 ft |
| p | 34 ft |
| e | 13 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 39 ft | 12.75 ft | 34 ft | 13 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 38.98 ft - (11881 mm) |
| Foot | * 21.04 ft - (6413 mm) |
| Leech | * 35.86 ft - (10930 mm) |
| Perc LP | * 165 |
| Area | * 615 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 22.57 ft - (6879 mm) |
| Foot | * 9.59 ft - (2923 mm) |
| Leech | * 18.45 ft - (5624 mm) |
| Perc LP | * 60 |
| Length Perp | * 7.65 |
| Deck Angle | * 18.97 ° |
| Area | * 86.35 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 34 ft - (10363 mm) |
| Foot | * 13 ft - (3962 mm) |
| Leech-AftHdBd | * 35.69 ft - (10878 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 35.97 ft - (10964 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 228.28 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 38.98 ft - (11881 mm) |
| Foot | * 20.64 ft - (6291 mm) |
| Leech | * 36.6 ft - (11156 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 19.12 ft - (5828 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 372.67 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 32.82 ft - (10004 mm) |
| Foot | * 16.96 ft - (5169 mm) |
| Leech | * 28.39 ft - (8653 mm) |
| Percentage LP | * 115.06 % |
| Length Perpendicular | * 14.67 ft - (4471 mm) |
| Deck Angle | * 12.03 ° |
| Area | * 240.71 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
