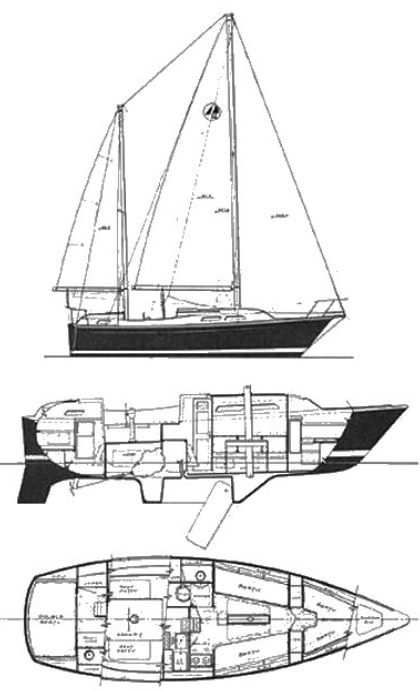

O'Day 32 Ketch
Description
The O'DAY 32 KETCH is a mid-sized cruiser designed by Raymond Hunt (C.R. Hunt & Assoc.). She combines good sailing performance with comfortable accommodations, with a deep keel providing excellent upwind performance and stability. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Raymond Hunt (C.R. Hunt & Assoc.) |
|---|---|
| Length | 32.000 ft |
| LOA | 31.580 ft |
| LWL | 27.290 ft |
| Beam | 10.500 ft |
| Displacement | 11000 lb |
| Max Draft | 7.080 ft |
| Min Draft | 3.330 ft |
The standard boat dimensions
| i | 36.25 ft |
|---|---|
| j | 12.58 ft |
| p | 31.50 ft |
| e | 11.75 ft |
| p2 | 21 ft |
| e2 | 8 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 36.25 ft | 12.58 ft | 31.50 ft | 11.75 ft | 21 ft | 8 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| 23 | * 31.5 |
| 10 | * 11.75 |
| 24.55 | * 33.08 |
| 88 | * 87.98 |
| 24.76 | * 33.23 |
| 4.5 | * 5.25 |
| 118.76 | 184.84 |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 30.7 ft - (9357 mm) |
| Foot | * 16.9 ft - (5151 mm) |
| Leech | * 26.3 ft - (8016 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 14.47 ft - (4410 mm) |
| Deck Angle | * 12 ° |
| Area | 222.06 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 36.45 ft - (11110 mm) |
| Foot | * 20.52 ft - (6254 mm) |
| Leech | * 34.09 ft - (10391 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.87 ft - (5752 mm) |
| Deck Angle | * 4 ° |
| Area | 343.92 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 21 ft - (6401 mm) |
| Foot | * 8 ft - (2438 mm) |
| Leech-AftHdBd | * 22.11 ft - (6739 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 22.21 ft - (6770 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | 83.9 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
