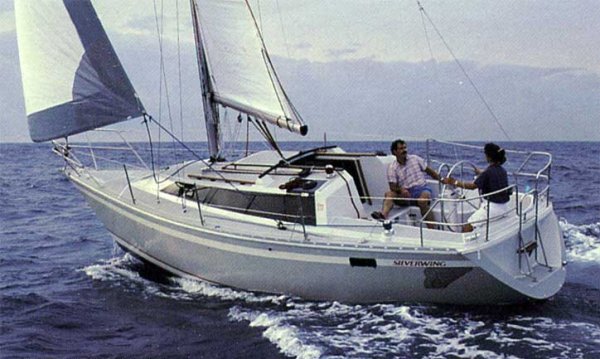

O'Day 302
Description
The O'DAY 302 is a compact cruiser designed by C. Raymond Hunt. She strikes a balance between performance and comfort, featuring variable draft for versatility in different sailing conditions. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | C. Raymond Hunt |
|---|---|
| Length | 30.000 ft |
| LOA | 29.580 ft |
| LWL | 24.170 ft |
| Beam | 10.750 ft |
| Displacement | 7200 lb |
| Max Draft | 3.920 ft |
| Min Draft | 3.330 ft |
The standard boat dimensions
| i | 36 ft |
|---|---|
| j | 11.25 ft |
| p | 30.50 ft |
| e | 11.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 36 ft | 11.25 ft | 30.50 ft | 11.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 36.5 ft - (11125 mm) |
| Foot | 19 ft - (5791 mm) |
| Leech | 34 ft - (10363 mm) |
| Perc LP | * 165 |
| Area | * 520 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 34.51 ft - (10519 mm) |
| Foot | * 16.85 ft - (5136 mm) |
| Leech | * 32.58 ft - (9930 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15.75 ft - (4801 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 271.76 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 34.5 ft - (10516 mm) |
| Foot | 18 ft - (5486 mm) |
| Leech | 32.83 ft - (10007 mm) |
| Percentage LP | * 149.78 % |
| Length Perpendicular | * 16.85 ft - (5136 mm) |
| Deck Angle | * 3.22 ° |
| Area | * 290.7 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 34.5 ft - (10516 mm) |
| Foot | 15.75 ft - (4801 mm) |
| Leech | 32.25 ft - (9830 mm) |
| Percentage LP | * 130.22 % |
| Length Perpendicular | * 14.65 ft - (4465 mm) |
| Deck Angle | * 4.14 ° |
| Area | * 252.79 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.06 ft - (8857 mm) |
| Foot | * 13.79 ft - (4203 mm) |
| Leech | * 25.46 ft - (7760 mm) |
| Percentage LP | * 115.05 % |
| Length Perpendicular | * 12.08 ft - (3682 mm) |
| Deck Angle | * 12.03 ° |
| Area | * 175.54 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 30.5 ft - (9296 mm) |
| Foot | * 11.25 ft - (3429 mm) |
| Leech-AftHdBd | * 31.9 ft - (9723 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 32.14 ft - (9796 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 177.32 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 20.74 ft - (6322 mm) |
| Foot | * 8.38 ft - (2554 mm) |
| Leech | * 17.16 ft - (5230 mm) |
| Perc LP | * 60 |
| Length Perp | * 6.75 |
| Deck Angle | * 18.97 ° |
| Area | * 70.01 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
