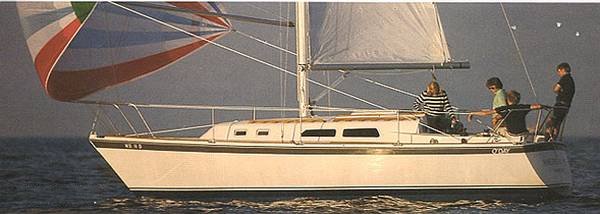

O'Day 30
Description
The O'DAY 30 is a compact cruiser designed by C. Raymond Hunt. Her substantial displacement provides a comfortable, sea-kindly motion, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | C. Raymond Hunt |
|---|---|
| Length | 30.000 ft |
| LOA | 29.920 ft |
| LWL | 25.420 ft |
| Beam | 10.750 ft |
| Displacement | 10500 lb |
| Max Draft | 4.920 ft |
The standard boat dimensions
| i | 39.75 ft |
|---|---|
| j | 13.50 ft |
| p | 33.75 ft |
| e | 10.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 39.75 ft | 13.50 ft | 33.75 ft | 10.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 41 ft - (12497 mm) |
| Foot | 23 ft - (7010 mm) |
| Leech | 38.5 ft - (11735 mm) |
| Perc LP | * 165 |
| Area | * 707 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 39.88 ft - (12155 mm) |
| Foot | * 22.88 ft - (6974 mm) |
| Leech | * 35.56 ft - (10839 mm) |
| Perc LP | * 150 |
| Length Perp | * 20.25 |
| Deck Angle | * 8.98 ° |
| Area | * 403.8 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 38.75 ft - (11811 mm) |
| Foot | 19 ft - (5791 mm) |
| Leech | 36.25 ft - (11049 mm) |
| Percentage LP | * 130.59 % |
| Length Perpendicular | * 17.63 ft - (5374 mm) |
| Deck Angle | * 3.11 ° |
| Area | * 341.63 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 38.75 ft - (11811 mm) |
| Foot | 18.33 ft - (5587 mm) |
| Leech | 36 ft - (10973 mm) |
| Percentage LP | * 125.56 % |
| Length Perpendicular | * 16.95 ft - (5166 mm) |
| Deck Angle | * 3.65 ° |
| Area | * 328.32 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 39.88 ft - (12155 mm) |
| Foot | * 21.96 ft - (6693 mm) |
| Leech | * 37.35 ft - (11384 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 20.25 ft - (6172 mm) |
| Deck Angle | * 4 ° |
| Area | * 403.78 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 38.75 ft - (11811 mm) |
| Foot | 20.5 ft - (6248 mm) |
| Leech | 36.25 ft - (11049 mm) |
| Percentage LP | * 140.3 % |
| Length Perpendicular | * 18.94 ft - (5773 mm) |
| Deck Angle | * 3.73 ° |
| Area | * 366.98 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 33.58 ft - (10235 mm) |
| Foot | * 18.06 ft - (5505 mm) |
| Leech | * 28.87 ft - (8800 mm) |
| Percentage LP | * 114.96 % |
| Length Perpendicular | * 15.52 ft - (4730 mm) |
| Deck Angle | * 12 ° |
| Area | * 260.57 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 33.75 ft - (10287 mm) |
| Foot | * 10.25 ft - (3124 mm) |
| Leech-AftHdBd | * 34.73 ft - (10586 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 34.93 ft - (10647 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 178.38 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 39.88 |
| MidGirth | * 24.3 ft - (7407 mm) |
| Foot | * 24.3 ft - (7407 mm) |
| Perc LP | * 180 |
| Area | * 824 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 23.09 ft - (7038 mm) |
| Foot | * 10.25 ft - (3124 mm) |
| Leech | * 18.66 ft - (5688 mm) |
| Perc LP | * 60 |
| Length Perp | * 8.1 |
| Deck Angle | * 19.03 ° |
| Area | * 93.52 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
