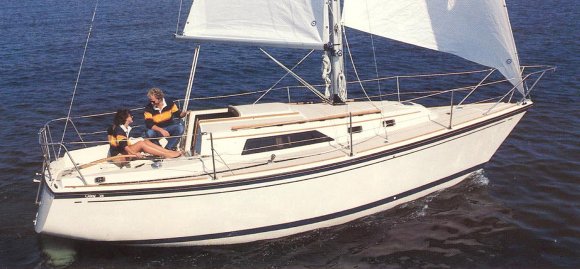

O'Day 28
Description
The O'DAY 28 is a compact cruiser designed by C. Raymond Hunt. Her substantial displacement provides a comfortable, sea-kindly motion, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | C. Raymond Hunt |
|---|---|
| Length | 28.000 ft |
| LOA | 28.250 ft |
| LWL | 22.920 ft |
| Beam | 10.250 ft |
| Displacement | 7300 lb |
| Max Draft | 4.500 ft |
The standard boat dimensions
| i | 36 ft |
|---|---|
| j | 12.08 ft |
| p | 30.50 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 36 ft | 12.08 ft | 30.50 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 37 ft - (11278 mm) |
| Foot | 20.5 ft - (6248 mm) |
| Leech | 35 ft - (10668 mm) |
| Perc LP | * 165 |
| Area | * 569 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 36.07 ft - (10994 mm) |
| Foot | * 20.44 ft - (6230 mm) |
| Leech | * 32.19 ft - (9812 mm) |
| Perc LP | * 150 |
| Length Perp | * 18.12 |
| Deck Angle | * 9.03 ° |
| Area | * 326.75 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 34.67 ft - (10567 mm) |
| Foot | 18.167 ft - (5537 mm) |
| Leech | 33.167 ft - (10109 mm) |
| Percentage LP | * 141.31 % |
| Length Perpendicular | * 17.07 ft - (5203 mm) |
| Deck Angle | * 1.51 ° |
| Area | * 295.83 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 35 ft - (10668 mm) |
| Foot | 19.58 ft - (5968 mm) |
| Leech | 33 ft - (10058 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.12 ft - (5523 mm) |
| Deck Angle | * 3.72 ° |
| Area | * 317.1 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 35 ft - (10668 mm) |
| Foot | 17 ft - (5182 mm) |
| Leech | 32.5 ft - (9906 mm) |
| Percentage LP | * 129.88 % |
| Length Perpendicular | * 15.69 ft - (4782 mm) |
| Deck Angle | * 4.07 ° |
| Area | * 274.61 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 35.25 ft - (10744 mm) |
| Foot | 17.5 ft - (5334 mm) |
| Leech | 33.25 ft - (10135 mm) |
| Percentage LP | * 135.18 % |
| Length Perpendicular | * 16.33 ft - (4977 mm) |
| Deck Angle | * 2.51 ° |
| Area | * 287.84 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 32 ft - (9754 mm) |
| Foot | 14 ft - (4267 mm) |
| Leech | 27 ft - (8230 mm) |
| Percentage LP | * 96.94 % |
| Length Perpendicular | * 11.71 ft - (3569 mm) |
| Deck Angle | * 14.68 ° |
| Area | * 187.37 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 36.167 ft - (11024 mm) |
| Foot | 19.5 ft - (5944 mm) |
| Leech | 34.25 ft - (10439 mm) |
| Percentage LP | * 150.25 % |
| Length Perpendicular | * 18.15 ft - (5532 mm) |
| Deck Angle | * 2.88 ° |
| Area | * 328.26 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 35.5 ft - (10820 mm) |
| Foot | 13.33 ft - (4063 mm) |
| Leech | 32.25 ft - (9830 mm) |
| Percentage LP | * 100.08 % |
| Length Perpendicular | * 12.09 ft - (3685 mm) |
| Deck Angle | * 6.31 ° |
| Area | * 214.68 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 30.38 ft - (9260 mm) |
| Foot | * 16.13 ft - (4916 mm) |
| Leech | * 26.17 ft - (7977 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 13.89 ft - (4234 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 210.99 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 30.5 ft - (9296 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech-AftHdBd | * 31.56 ft - (9619 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 31.76 ft - (9680 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 157.42 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 36.07 |
| MidGirth | * 21.74 ft - (6626 mm) |
| Foot | * 21.74 ft - (6626 mm) |
| Perc LP | * 180 |
| Area | * 667 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 20.88 ft - (6364 mm) |
| Foot | * 9.14 ft - (2786 mm) |
| Leech | * 15.97 ft - (4868 mm) |
| Perc LP | * 54.55 |
| Length Perp | * 6.59 |
| Deck Angle | * 25.31 ° |
| Area | * 68.8 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 11.3 ft - (3444 mm) |
| Foot | * 10.39 ft - (3167 mm) |
| Leech | * 9.42 ft - (2871 mm) |
| Length Perp | * 9.42 |
| Tack Angle | * -25 ° |
| Area | * 46 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
