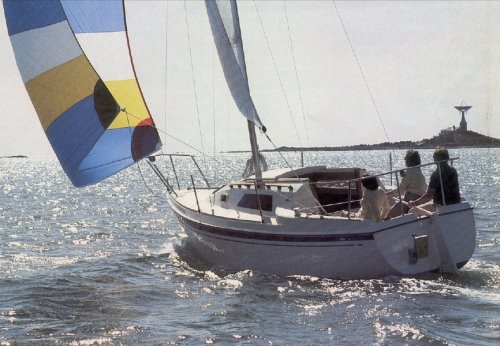

O'DAY 26
Description
The O'DAY 26 is a compact cruiser designed by C. Raymond Hunt Associates. She strikes a balance between performance and comfort, featuring variable draft for versatility in different sailing conditions. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | C. Raymond Hunt Associates |
|---|---|
| Length | 26.000 ft |
| LOA | 25.700 ft |
| LWL | 21.580 ft |
| Beam | 8.000 ft |
| Displacement | 4800 lb |
| Max Draft | 6.000 ft |
| Min Draft | 2.500 ft |
The standard boat dimensions
| i | 30 ft |
|---|---|
| j | 10.33 ft |
| p | 25 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 30 ft | 10.33 ft | 25 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 31 ft - (9449 mm) |
| Foot | 18 ft - (5486 mm) |
| Leech | 28 ft - (8534 mm) |
| Perc LP | * 165 |
| Area | * 418 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 30.14 ft - (9187 mm) |
| Foot | * 17.56 ft - (5352 mm) |
| Leech | * 26.82 ft - (8175 mm) |
| Perc LP | * 150.05 |
| Length Perp | * 15.5 |
| Deck Angle | * 9.03 ° |
| Area | * 233.58 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 30.14 ft - (9187 mm) |
| Foot | * 16.84 ft - (5133 mm) |
| Leech | * 28.2 ft - (8595 mm) |
| Percentage LP | * 150.05 % |
| Length Perpendicular | * 15.5 ft - (4724 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 233.59 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 25 ft - (7620 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech-AftHdBd | * 26.39 ft - (8044 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 26.6 ft - (8108 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 129.04 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 25.38 ft - (7736 mm) |
| Foot | * 13.86 ft - (4225 mm) |
| Leech | * 21.77 ft - (6635 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 11.88 ft - (3621 mm) |
| Deck Angle | * 12 ° |
| Area | * 150.77 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 30.14 |
| MidGirth | * 18.59 ft - (5666 mm) |
| Foot | * 18.59 ft - (5666 mm) |
| Perc LP | * 180 |
| Area | * 476 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 29.75 ft - (9068 mm) |
| Foot | 15.167 ft - (4623 mm) |
| Leech | 27.75 ft - (8458 mm) |
| Percentage LP | * 135.62 % |
| Length Perpendicular | * 14.01 ft - (4270 mm) |
| Deck Angle | * 3.48 ° |
| Area | * 208.47 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 28 ft - (8534 mm) |
| Foot | 14.5 ft - (4420 mm) |
| Leech | 26.25 ft - (8001 mm) |
| Percentage LP | * 130.11 % |
| Length Perpendicular | * 13.44 ft - (4097 mm) |
| Deck Angle | * 3.08 ° |
| Area | * 188.12 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 26.75 ft - (8153 mm) |
| Foot | 12.83 ft - (3911 mm) |
| Leech | 23.75 ft - (7239 mm) |
| Percentage LP | * 110.26 % |
| Length Perpendicular | * 11.39 ft - (3472 mm) |
| Deck Angle | * 8.42 ° |
| Area | * 152.32 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
