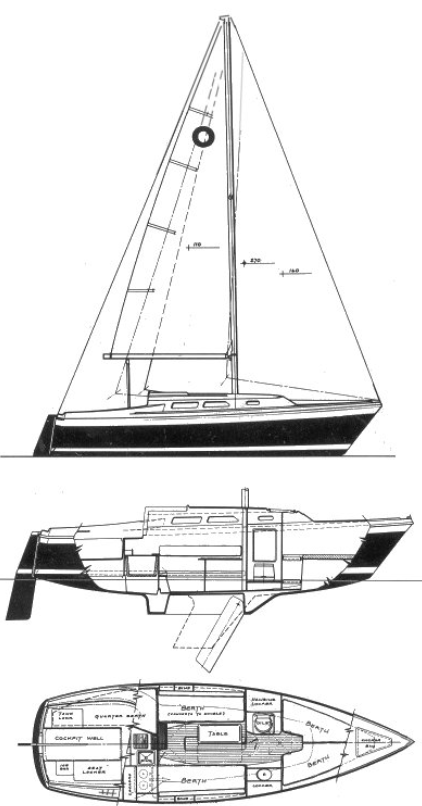

O'Day 25 Tall Rig
Description
The O'DAY 25 TALL RIG is a sailboat designed by C. Raymond Hunt and Assoc.. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 32 ft |
|---|---|
| j | 10.60 ft |
| p | 26.25 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 32 ft | 10.60 ft | 26.25 ft | 9 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 26.25 ft - (8001 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech | * 27.27 ft - (8312 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 27.45 ft - (8367 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 121.89 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 26.97 ft - (8220 mm) |
| Foot | * 14.13 ft - (4307 mm) |
| Leech | * 23.27 ft - (7093 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.19 ft - (3716 mm) |
| Deck Angle | * 12.06 ° |
| Area | * 164.37 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 32.02 ft - (9760 mm) |
| Foot | 17.7 ft - (5395 mm) |
| Leech | 30.5 ft - (9296 mm) |
| Percentage LP | * 155.75 % |
| Length Perpendicular | * 16.51 ft - (5032 mm) |
| Deck Angle | * 2.79 ° |
| Area | * 264.35 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 32.02 ft - (9760 mm) |
| Foot | * 17.19 ft - (5240 mm) |
| Leech | * 30.04 ft - (9156 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15.9 ft - (4846 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 254.56 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 32.02 ft - (9760 mm) |
| Foot | * 17.9 ft - (5456 mm) |
| Leech | * 28.62 ft - (8723 mm) |
| Perc LP | * 150 % |
| Length Perp | * 15.9 ft - (4846 mm) |
| Deck Angle | * 9.02 ° |
| Area | * 254.55 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 32.02 ft - (9760 mm) |
| Foot | * 17.49 ft - (5331 mm) |
| Leech | * 29.46 ft - (8979 mm) |
| Perc LP | * 165 % |
| Area | * 420 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 32.02 ft - (9760 mm) |
| MidGirth | * 19.08 ft - (5816 mm) |
| Foot | * 19.08 ft - (5816 mm) |
| Perc LP | * 180 % |
| Area | * 519 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 18.54 ft - (5651 mm) |
| Foot | * 8 ft - (2438 mm) |
| Leech | * 14.25 ft - (4343 mm) |
| Perc LP | * 54.62 % |
| Length Perp | * 5.79 ft - (1765 mm) |
| Deck Angle | * 25.3 ° |
| Area | * 53.68 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 9.94 ft - (3030 mm) |
| Foot | * 9.15 ft - (2789 mm) |
| Leech | * 8.29 ft - (2527 mm) |
| Length Perp | * 8.29 ft - (2527 mm) |
| Tack Angle | * -25 ° |
| Area | * 35 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
