O'Day 25 Std
Description

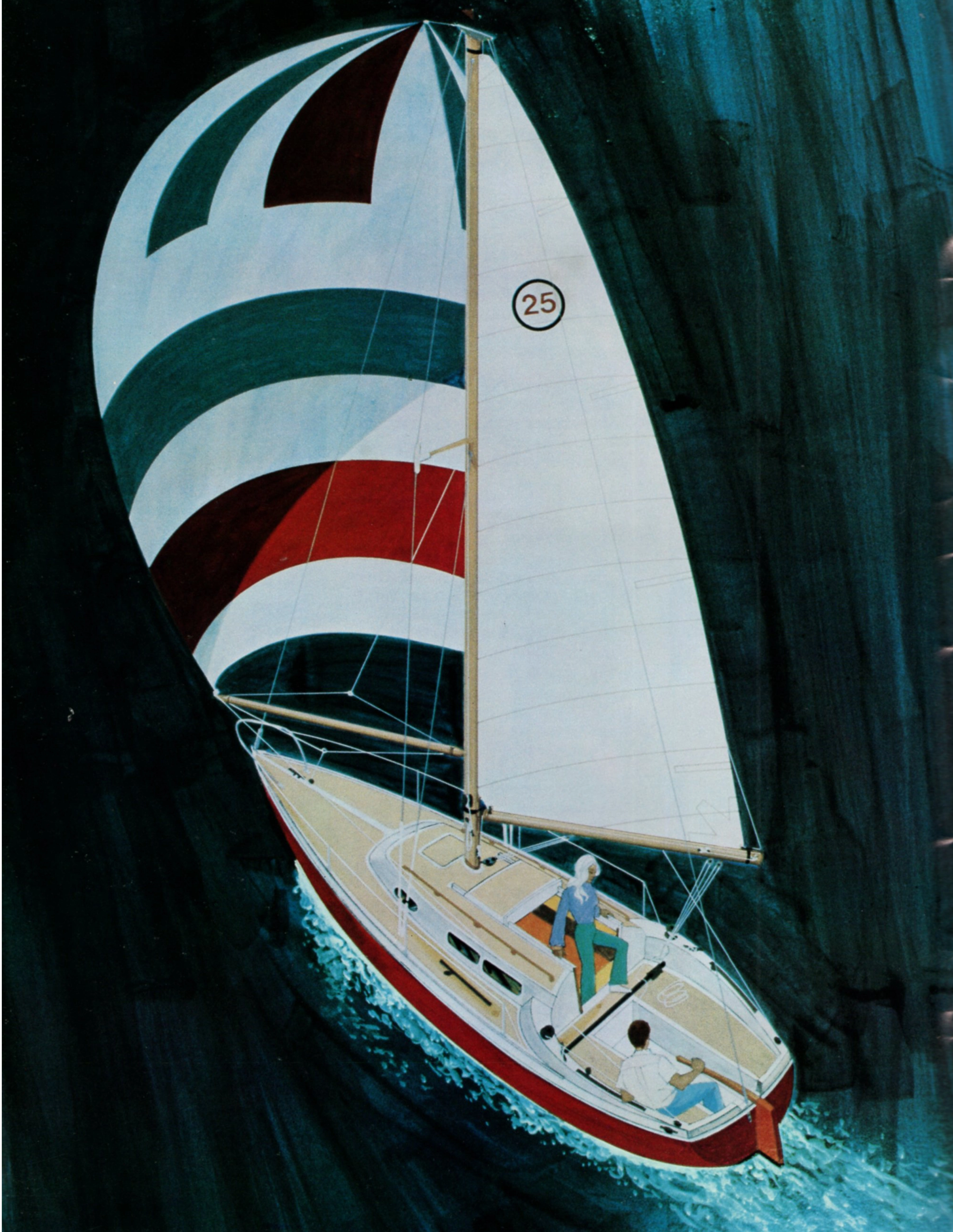

The O'DAY 25 STD is a sailboat designed by C. Raymond Hunt. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 30 ft |
|---|---|
| j | 10.60 ft |
| p | 24.50 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 30 ft | 10.60 ft | 24.50 ft | 9 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 30.23 ft - (9214 mm) |
| Foot | * 17.49 ft - (5331 mm) |
| Leech | * 27.81 ft - (8476 mm) |
| Perc LP | * 165 |
| Area | * 397 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 29 ft - (8839 mm) |
| Foot | 17.5 ft - (5334 mm) |
| Leech | 28 ft - (8534 mm) |
| Percentage LP | * 154.15 % |
| Length Perpendicular | * 16.34 ft - (4980 mm) |
| Deck Angle | * 1.51 ° |
| Area | * 236.94 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 29 ft - (8839 mm) |
| Foot | * 17.33 ft - (5282 mm) |
| Leech | 27 ft - (8230 mm) |
| Percentage LP | * 149.06 % |
| Length Perpendicular | * 15.8 ft - (4816 mm) |
| Deck Angle | * 4.76 ° |
| Area | * 229.17 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 30.23 ft - (9214 mm) |
| Foot | * 17.33 ft - (5282 mm) |
| Leech | * 28.24 ft - (8608 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15.9 ft - (4846 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 240.34 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 29 ft - (8839 mm) |
| Foot | 15 ft - (4572 mm) |
| Leech | 26.875 ft - (8192 mm) |
| Percentage LP | * 130 % |
| Length Perpendicular | * 13.78 ft - (4200 mm) |
| Deck Angle | * 3.81 ° |
| Area | * 199.8 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 28.75 ft - (8763 mm) |
| Foot | 15.25 ft - (4648 mm) |
| Leech | 26.25 ft - (8001 mm) |
| Percentage LP | * 130.47 % |
| Length Perpendicular | * 13.83 ft - (4215 mm) |
| Deck Angle | * 5.5 ° |
| Area | * 198.74 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 25.45 ft - (7757 mm) |
| Foot | * 14.29 ft - (4356 mm) |
| Leech | * 21.73 ft - (6623 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.19 ft - (3716 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 155.1 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 25.5 ft - (7772 mm) |
| Foot | 12.58 ft - (3834 mm) |
| Leech | 21.5 ft - (6553 mm) |
| Percentage LP | * 99.91 % |
| Length Perpendicular | * 10.59 ft - (3228 mm) |
| Deck Angle | * 13.2 ° |
| Area | * 135.03 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 24.5 ft - (7468 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech-AftHdBd | * 25.62 ft - (7809 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 25.8 ft - (7864 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 113.79 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 30.23 |
| MidGirth | * 19.08 ft - (5816 mm) |
| Foot | * 19.08 ft - (5816 mm) |
| Perc LP | * 180 |
| Area | * 490 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 16.75 ft - (5105 mm) |
| Foot | 7 ft - (2134 mm) |
| Leech | 13.42 ft - (4090 mm) |
| Perc LP | * 50.85 |
| Length Perp | * 5.39 |
| Deck Angle | * 20.14 ° |
| Area | * 45.17 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
