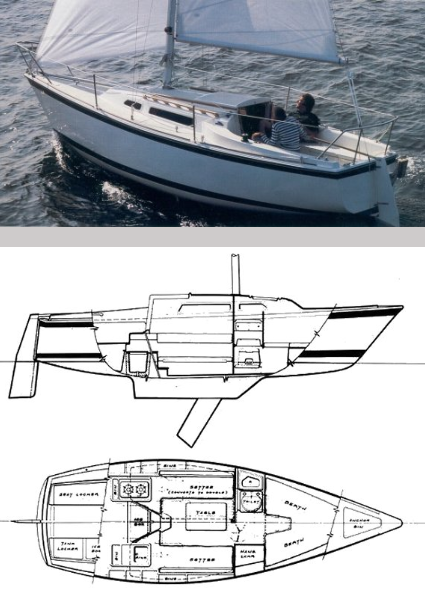

O'DAY 23 MK II 1977 AND FUTURE
Description
The O'DAY 23 MK II 1977 AND FUTURE is a sailboat designed by C.Raymond Hunt. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 28 ft |
|---|---|
| j | 10 ft |
| p | 23.50 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 28 ft | 10 ft | 23.50 ft | 9 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | 27.67 ft - (8434 mm) |
| Foot | 11.33 ft - (3453 mm) |
| Leech | 23.5 ft - (7163 mm) |
| Percentage LP | * 95 % |
| Length Perpendicular | * 9.5 ft - (2896 mm) |
| Deck Angle | * 13.37 ° |
| Area | * 131.42 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 29 ft - (8839 mm) |
| Foot | 17 ft - (5182 mm) |
| Leech | 27 ft - (8230 mm) |
| Perc LP | * 165 |
| Area | * 370 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 27.25 ft - (8306 mm) |
| Foot | 14.25 ft - (4343 mm) |
| Leech | 25 ft - (7620 mm) |
| Percentage LP | * 129.8 % |
| Length Perpendicular | * 12.98 ft - (3956 mm) |
| Deck Angle | * 4.73 ° |
| Area | * 176.84 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 26.5 ft - (8077 mm) |
| Foot | 12.5 ft - (3810 mm) |
| Leech | 24.25 ft - (7391 mm) |
| Percentage LP | * 114.1 % |
| Length Perpendicular | * 11.41 ft - (3478 mm) |
| Deck Angle | * 4.44 ° |
| Area | * 151.2 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 27.5 ft - (8382 mm) |
| Foot | 16.42 ft - (5005 mm) |
| Leech | 25.67 ft - (7824 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15 ft - (4572 mm) |
| Deck Angle | * 4.32 ° |
| Area | * 206.3 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 25.6 ft - (7803 mm) |
| Foot | 14 ft - (4267 mm) |
| Leech | 24 ft - (7315 mm) |
| Percentage LP | * 129.3 % |
| Length Perpendicular | * 12.93 ft - (3941 mm) |
| Deck Angle | * 2.94 ° |
| Area | * 165.45 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 23.5 ft - (7163 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech-AftHdBd | * 24.68 ft - (7522 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 24.87 ft - (7580 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 109.08 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 28.75 ft - (8763 mm) |
| Foot | 17 ft - (5182 mm) |
| Leech | 25.67 ft - (7824 mm) |
| Percentage LP | * 150.3 % |
| Length Perpendicular | * 15.03 ft - (4581 mm) |
| Deck Angle | * 8.19 ° |
| Area | * 216.07 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 26.25 ft - (8001 mm) |
| Foot | 11.33 ft - (3453 mm) |
| Leech | 22 ft - (6706 mm) |
| Percentage LP | * 93.8 % |
| Length Perpendicular | * 9.38 ft - (2859 mm) |
| Deck Angle | * 14.44 ° |
| Area | * 123.15 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 28.25 |
| MidGirth | 18 ft - (5486 mm) |
| Foot | 18 ft - (5486 mm) |
| Perc LP | * 180 |
| Area | * 432 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 28.25 ft - (8611 mm) |
| Foot | * 17.09 ft - (5209 mm) |
| Leech | * 25.05 ft - (7635 mm) |
| Perc LP | * 150 |
| Length Perp | * 15 |
| Deck Angle | * 8.97 ° |
| Area | * 211.89 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 14.75 ft - (4496 mm) |
| Foot | 8.167 ft - (2489 mm) |
| Leech | 10.5 ft - (3200 mm) |
| Perc LP | * 56.5 |
| Length Perp | * 5.65 |
| Deck Angle | * 26.59 ° |
| Area | * 41.66 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
