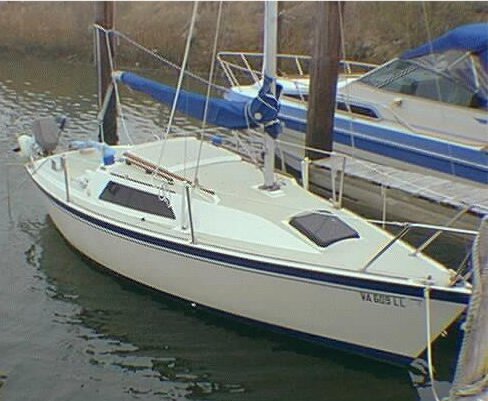

O'DAY 222
Description
2200 lbs. Disp. 800 lbs. Ballast 19'7" LWL 7'11" Beam 1'8" Draft board up 4'8" Draft board down
Construction Details
| Designer | C.Raymond Hunt |
|---|---|
| Length | 21.750 ft |
| LOA | 21.750 ft |
| LWL | 19.580 ft |
| Beam | 7.920 ft |
| Displacement | 2200 lb |
| Max Draft | 4.670 ft |
| Min Draft | 1.670 ft |
The standard boat dimensions
| i | 22.75 ft |
|---|---|
| j | 7.75 ft |
| p | 23.75 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 22.75 ft | 7.75 ft | 23.75 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 23.75 ft - (7239 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech-AftHdBd | * 25.24 ft - (7693 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 25.45 ft - (7757 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 122.62 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 22.83 ft - (6959 mm) |
| Foot | * 12.61 ft - (3844 mm) |
| Leech | * 21.37 ft - (6514 mm) |
| Percentage LP | * 149.94 % |
| Length Perpendicular | * 11.62 ft - (3542 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 132.65 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 21.33 ft - (6501 mm) |
| Foot | 9.75 ft - (2972 mm) |
| Leech | 19.5 ft - (5944 mm) |
| Percentage LP | * 114.84 % |
| Length Perpendicular | * 8.9 ft - (2713 mm) |
| Deck Angle | * 5.28 ° |
| Area | * 94.93 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 22.33 ft - (6806 mm) |
| Foot | 11 ft - (3353 mm) |
| Leech | 20.5 ft - (6248 mm) |
| Percentage LP | * 129.68 % |
| Length Perpendicular | * 10.05 ft - (3063 mm) |
| Deck Angle | * 5.13 ° |
| Area | * 112.25 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 21.5 ft - (6553 mm) |
| Foot | 11 ft - (3353 mm) |
| Leech | 20 ft - (6096 mm) |
| Percentage LP | * 130.84 % |
| Length Perpendicular | * 10.14 ft - (3091 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 109.02 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 21.5 ft - (6553 mm) |
| Foot | 10.33 ft - (3149 mm) |
| Leech | 19.5 ft - (5944 mm) |
| Percentage LP | * 120.65 % |
| Length Perpendicular | * 9.35 ft - (2850 mm) |
| Deck Angle | * 6.33 ° |
| Area | * 100.53 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 21 ft - (6401 mm) |
| Foot | 9.25 ft - (2819 mm) |
| Leech | 18.25 ft - (5563 mm) |
| Percentage LP | * 103.48 % |
| Length Perpendicular | * 8.02 ft - (2444 mm) |
| Deck Angle | * 11.06 ° |
| Area | * 84.22 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 13 ft - (3962 mm) |
| Leech | 21.5 ft - (6553 mm) |
| Perc LP | * 165 |
| Area | * 224 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 21.5 ft - (6553 mm) |
| Foot | 12.58 ft - (3834 mm) |
| Leech | 20.25 ft - (6172 mm) |
| Percentage LP | * 149.55 % |
| Length Perpendicular | * 11.59 ft - (3533 mm) |
| Deck Angle | * 4.08 ° |
| Area | * 124.58 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 22.83 ft - (6959 mm) |
| Foot | * 13.14 ft - (4005 mm) |
| Leech | * 20.34 ft - (6200 mm) |
| Perc LP | * 149.94 |
| Length Perp | * 11.62 |
| Deck Angle | * 9.02 ° |
| Area | * 132.64 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 21.33 ft - (6501 mm) |
| Foot | 11.42 ft - (3481 mm) |
| Leech | 19.7 ft - (6005 mm) |
| Percentage LP | * 134.71 % |
| Length Perpendicular | * 10.44 ft - (3182 mm) |
| Deck Angle | * 5.08 ° |
| Area | * 111.36 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
