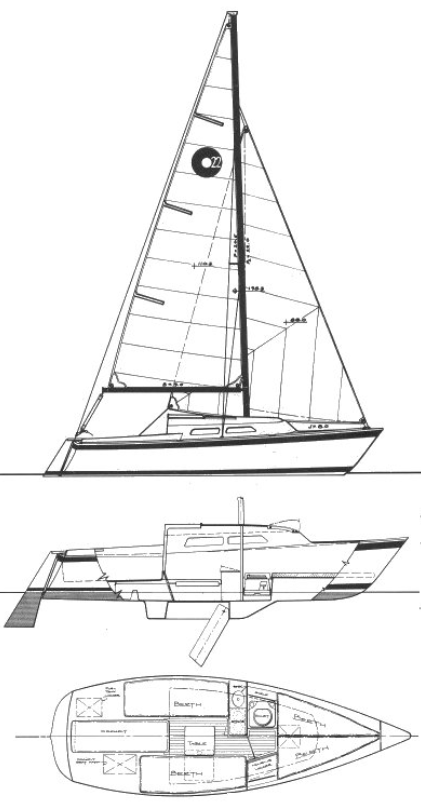

O'DAY 20 MK II (FRACTIONAL)
Description
The O'DAY 20 MK II (FRACTIONAL) is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 20.000 ft |
The standard boat dimensions
| i | 22 ft |
|---|---|
| j | 7 ft |
| p | 24.50 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 22 ft | 7 ft | 24.50 ft | 9 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | STORMJIB |
|---|---|
| Luff | 12 ft - (3658 mm) |
| Foot | 5.5 ft - (1676 mm) |
| Leech | 9.5 ft - (2896 mm) |
| Perc LP | * 60.57 |
| Length Perp | * 4.24 |
| Deck Angle | * 20.6 ° |
| Area | * 25.46 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 21.75 ft - (6629 mm) |
| Foot | 12.2 ft - (3719 mm) |
| Leech | 20.33 ft - (6197 mm) |
| Percentage LP | * 160.29 % |
| Length Perpendicular | * 11.22 ft - (3420 mm) |
| Deck Angle | * 5.49 ° |
| Area | * 122 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 21.75 ft - (6629 mm) |
| Foot | 8.17 ft - (2490 mm) |
| Leech | 19.17 ft - (5843 mm) |
| Percentage LP | * 102.14 % |
| Length Perpendicular | * 7.15 ft - (2179 mm) |
| Deck Angle | * 11.35 ° |
| Area | * 77.71 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 22 ft - (6706 mm) |
| Foot | 12 ft - (3658 mm) |
| Leech | 20 ft - (6096 mm) |
| Perc LP | * 165 |
| Area | * 198 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 18 ft - (5486 mm) |
| Foot | 7.75 ft - (2362 mm) |
| Leech | 14.458 ft - (4407 mm) |
| Percentage LP | * 86.29 % |
| Length Perpendicular | * 6.04 ft - (1841 mm) |
| Deck Angle | * 21.2 ° |
| Area | * 54.32 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 24.5 ft - (7468 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech-AftHdBd | * 25.62 ft - (7809 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 25.8 ft - (7864 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 113.79 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 21.93 ft - (6684 mm) |
| MidGirth | * 12.6 ft - (3840 mm) |
| Foot | * 12.6 ft - (3840 mm) |
| Perc LP | * 180 |
| Area | * 235 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 20.5 ft - (6248 mm) |
| Foot | 9.75 ft - (2972 mm) |
| Leech | 19.33 ft - (5892 mm) |
| Percentage LP | * 130.29 % |
| Length Perpendicular | * 9.12 ft - (2780 mm) |
| Deck Angle | * 3.11 ° |
| Area | * 93.45 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
