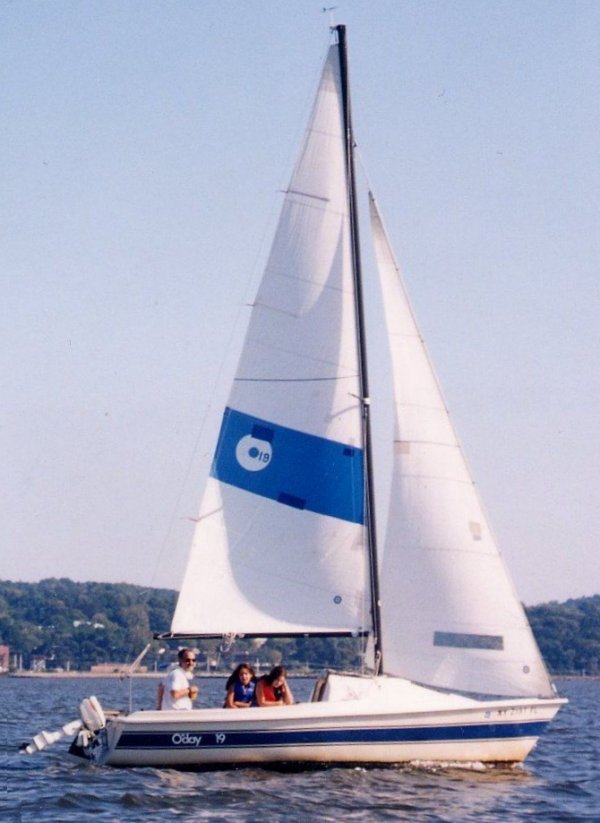

O'Day 19
Description
The O'Day 19 is a dinghy designed by C.Raymond Hunt. This pocket cruiser packs surprising capability into a small package, featuring variable draft for versatility in different sailing conditions. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Construction Details
| Designer | C.Raymond Hunt |
|---|---|
| Length | 19.000 ft |
| LOA | 19.000 ft |
| LWL | 16.670 ft |
| Beam | 7.750 ft |
| Displacement | 2040 lb |
| Max Draft | 4.330 ft |
| Min Draft | 1.000 ft |
The standard boat dimensions
| i | 22 ft |
|---|---|
| j | 7 ft |
| p | 24.50 ft |
| e | 8.30 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 22 ft | 7 ft | 24.50 ft | 8.30 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 24.5 ft - (7468 mm) |
| Foot | * 8.3 ft - (2530 mm) |
| Leech-AftHdBd | * 25.43 ft - (7751 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 25.59 ft - (7800 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 104.72 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 20.75 ft - (6325 mm) |
| Foot | 8 ft - (2438 mm) |
| Leech | 18.75 ft - (5715 mm) |
| Percentage LP | * 103.14 % |
| Length Perpendicular | * 7.22 ft - (2201 mm) |
| Deck Angle | * 7.86 ° |
| Area | * 74.91 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 21.75 ft - (6629 mm) |
| Foot | 11.25 ft - (3429 mm) |
| Leech | 20.5 ft - (6248 mm) |
| Percentage LP | * 149.57 % |
| Length Perpendicular | * 10.47 ft - (3191 mm) |
| Deck Angle | * 3.85 ° |
| Area | * 113.83 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 12.5 ft - (3810 mm) |
| Leech | 21.5 ft - (6553 mm) |
| Perc LP | * 165 |
| Area | * 216 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 21.93 |
| MidGirth | * 12.6 ft - (3840 mm) |
| Foot | * 12.6 ft - (3840 mm) |
| Perc LP | * 180 |
| Area | * 235 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
