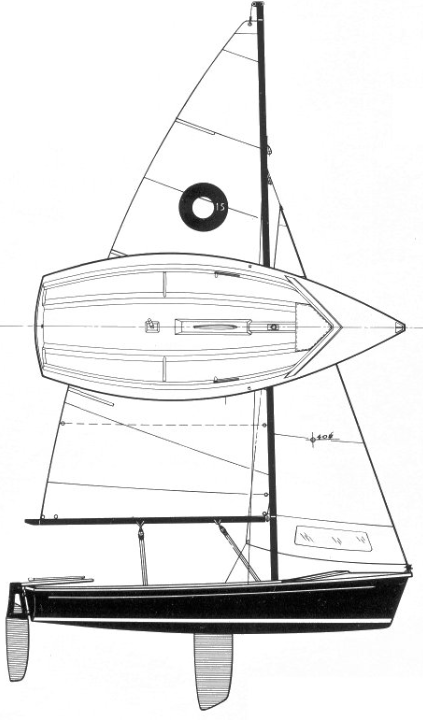

O'Day 15-2
Description
The O'Day 15-2 is a dinghy designed by John Deknatel. This nimble dinghy is designed for responsive sailing and easy handling, making her ideal for exploring shallow waters and protected anchorages. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Construction Details
| Designer | John Deknatel |
|---|---|
| Length | 15.000 ft |
| LOA | 14.920 ft |
| LWL | 13.750 ft |
| Beam | 5.820 ft |
| Displacement | 350 lb |
| Max Draft | 2.000 ft |
| Min Draft | 0.580 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 18 ft - (5486 mm) |
| Foot | 7.25 ft - (2210 mm) |
| Leech | * 18.81 ft - (5733 mm) |
| Tack Angle | * 86.58 ° |
| Diagonal | 19 ft - (5791 mm) |
| Head (inches) | 4 in - (102 mm) |
| Area | * 67.72 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 14.75 ft - (4496 mm) |
| Foot | 5.5 ft - (1676 mm) |
| Leech | 13.5 ft - (4115 mm) |
| Length Perpendicular | * 5.03 ft - (1533 mm) |
| Area | * 37.1 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
