OCEANIS 510 CLIPPER
Description

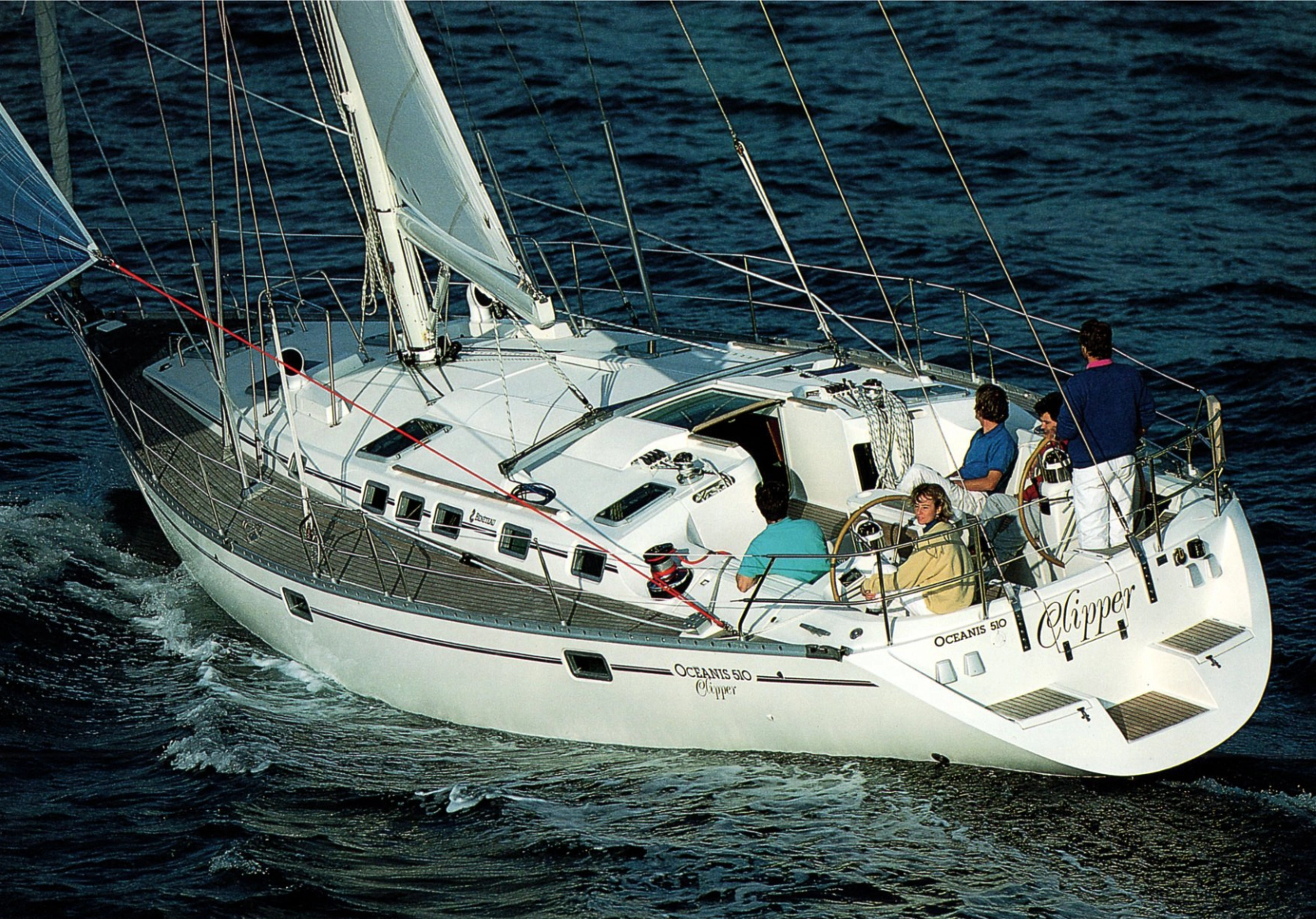

The OCEANIS 510 CLIPPER is a sailboat designed by Beneteau Yachts. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 59.55 ft |
|---|---|
| j | 18.70 ft |
| p | 51.60 ft |
| e | 18.04 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 59.55 ft | 18.70 ft | 51.60 ft | 18.04 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | STORMJIB |
|---|---|
| Luff | * 34.33 ft - (10464 mm) |
| Foot | * 13.95 ft - (4252 mm) |
| Leech | * 28.35 ft - (8641 mm) |
| Perc LP | * 60 |
| Length Perp | * 11.22 |
| Deck Angle | * 19.04 ° |
| Area | * 192.54 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 51.6 ft - (15728 mm) |
| Foot | * 18.04 ft - (5499 mm) |
| Leech-AftHdBd | * 53.68 ft - (16362 mm) |
| Tack Ang | * 88.02 ° |
| Diag (clew/head) | * 54.07 ft - (16481 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 473.58 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 49.93 ft - (15219 mm) |
| Foot | * 24.69 ft - (7526 mm) |
| Leech | * 43.48 ft - (13253 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 21.5 ft - (6553 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 536.76 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 59.3 ft - (18075 mm) |
| Foot | * 30.13 ft - (9184 mm) |
| Leech | * 55.85 ft - (17023 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 28.05 ft - (8550 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 831.64 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 59.3 |
| MidGirth | * 33.66 ft - (10260 mm) |
| Foot | * 33.66 ft - (10260 mm) |
| Perc LP | * 180 |
| Area | * 1697 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 59.3 ft - (18075 mm) |
| Foot | * 30.85 ft - (9403 mm) |
| Leech | * 54.56 ft - (16630 mm) |
| Perc LP | * 165 |
| Area | * 1372 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
