Oceanis 473
Description

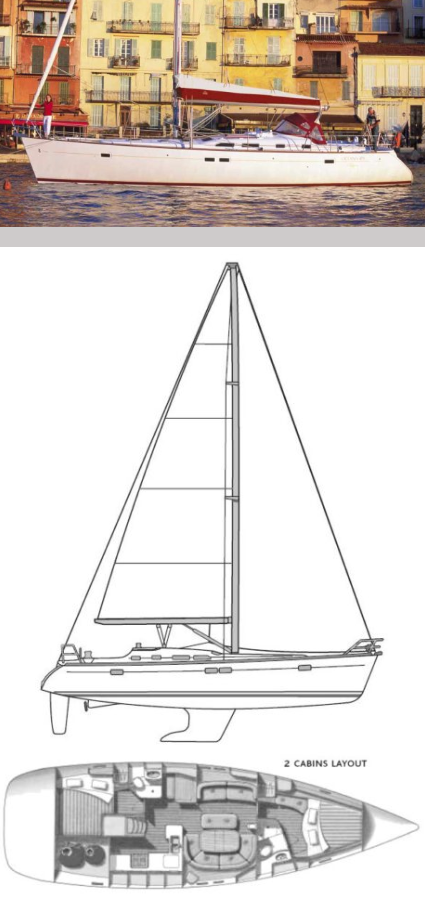

The Oceanis 473 is a sailboat designed by Groupe Finot and Jacques Fauroux. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Groupe Finot and Jacques Fauroux |
|---|---|
| Length | 47.000 ft |
The standard boat dimensions
| i | 53.87 ft |
|---|---|
| j | 18.21 ft |
| p | 47.38 ft |
| e | 17.08 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 53.87 ft | 18.21 ft | 47.38 ft | 17.08 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 47.38 ft - (14441 mm) |
| Foot | * 17.08 ft - (5206 mm) |
| Leech-AftHdBd | * 49.52 ft - (15094 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 49.8 ft - (15179 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 414.67 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 54.02 ft - (16465 mm) |
| Foot | * 29.61 ft - (9025 mm) |
| Leech | * 50.61 ft - (15426 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 27.32 ft - (8327 mm) |
| Deck Angle | * 4 ° |
| Area | * 737.92 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 54.02 ft - (16465 mm) |
| Foot | * 29.61 ft - (9025 mm) |
| Leech | * 50.61 ft - (15426 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 27.32 ft - (8327 mm) |
| Deck Angle | * 4 ° |
| Area | * 737.92 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 45.49 ft - (13865 mm) |
| Foot | * 24.35 ft - (7422 mm) |
| Leech | * 39.14 ft - (11930 mm) |
| Percentage LP | * 114.99 % |
| Length Perpendicular | * 20.94 ft - (6383 mm) |
| Deck Angle | * 12 ° |
| Area | * 476.33 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 54.02 ft - (16465 mm) |
| Foot | * 30.05 ft - (9159 mm) |
| Leech | * 49.7 ft - (15149 mm) |
| Perc LP | * 165 |
| Area | * 1217 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 18.167 ft - (5537 mm) |
| Foot | 4.92 ft - (1500 mm) |
| Leech | 16.25 ft - (4953 mm) |
| Percentage LP | * 23.34 % |
| Length Perpendicular | * 4.25 ft - (1295 mm) |
| Deck Angle | * 11.62 ° |
| Area | * 38.59 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 52.5 ft - (16002 mm) |
| Foot | 27.33 ft - (8330 mm) |
| Leech | 49.25 ft - (15011 mm) |
| Percentage LP | * 139.1 % |
| Length Perpendicular | * 25.33 ft - (7721 mm) |
| Deck Angle | * 3.38 ° |
| Area | * 664.91 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
