OCEANIS 430
Description

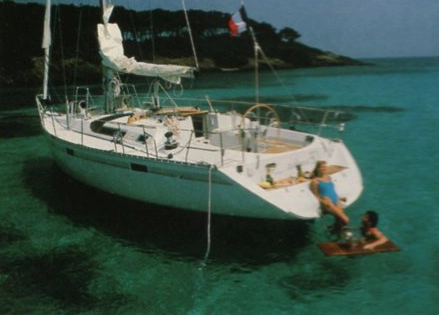

The OCEANIS 430 is a sailboat designed by Beneteau Yachts. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 52.69 ft |
|---|---|
| j | 15.81 ft |
| p | 46.59 ft |
| e | 14.44 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 52.69 ft | 15.81 ft | 46.59 ft | 14.44 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 44.01 ft - (13414 mm) |
| Foot | * 20.73 ft - (6319 mm) |
| Leech | * 38.6 ft - (11765 mm) |
| Percentage LP | * 114.99 % |
| Length Perpendicular | * 18.18 ft - (5541 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 400.07 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 52.26 ft - (15929 mm) |
| Foot | * 25.36 ft - (7730 mm) |
| Leech | * 49.36 ft - (15045 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 23.72 ft - (7230 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 619.79 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 52.26 |
| MidGirth | * 28.46 ft - (8675 mm) |
| Foot | * 28.46 ft - (8675 mm) |
| Perc LP | * 180 |
| Area | * 1264 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 52.26 ft - (15929 mm) |
| Foot | * 26.32 ft - (8022 mm) |
| Leech | * 47.24 ft - (14399 mm) |
| Perc LP | * 150.03 |
| Length Perp | * 23.72 |
| Deck Angle | * 8.98 ° |
| Area | * 619.8 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 52.26 ft - (15929 mm) |
| Foot | * 26.09 ft - (7952 mm) |
| Leech | * 48.08 ft - (14655 mm) |
| Perc LP | * 165 |
| Area | * 1023 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 30.26 ft - (9223 mm) |
| Foot | * 11.69 ft - (3563 mm) |
| Leech | * 25.28 ft - (7705 mm) |
| Perc LP | * 60.03 |
| Length Perp | * 9.49 |
| Deck Angle | * 19.04 ° |
| Area | * 143.56 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 46.59 ft - (14201 mm) |
| Foot | * 14.44 ft - (4401 mm) |
| Leech-AftHdBd | * 47.87 ft - (14591 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 48.29 ft - (14719 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 342.69 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
