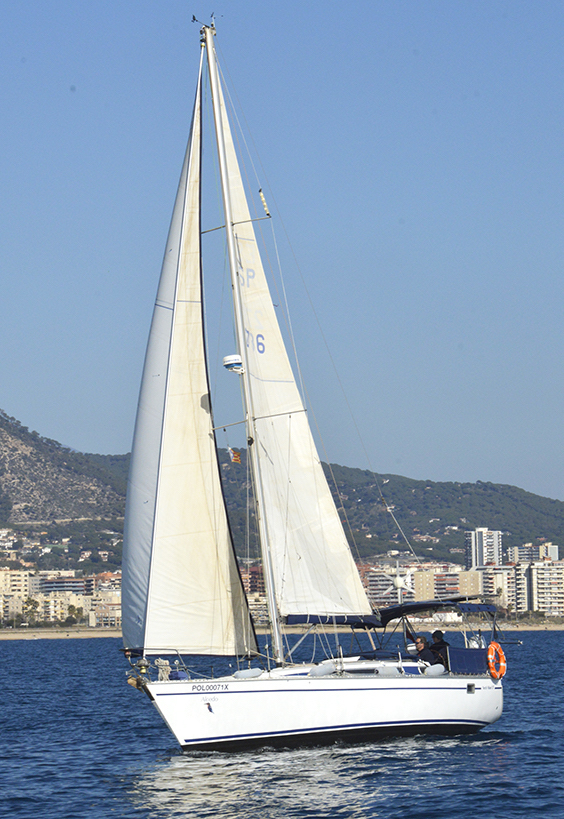

NORTHWIND 35
Description
The NORTHWIND 35 is a mid-sized cruiser. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 34.000 ft |
| LOA | 34.780 ft |
| LWL | 28.870 ft |
| Beam | 11.750 ft |
| Displacement | 10979 lb |
| Max Draft | 5.410 ft |
The standard boat dimensions
| i | 43.18 ft |
|---|---|
| j | 13.78 ft |
| p | 37.40 ft |
| e | 12.63 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 43.18 ft | 13.78 ft | 37.40 ft | 12.63 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 36.26 ft - (11052 mm) |
| Foot | * 18.24 ft - (5560 mm) |
| Leech | * 31.5 ft - (9601 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 15.85 ft - (4831 mm) |
| Deck Angle | * 12 ° |
| Area | 287.27 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 43.06 ft - (13125 mm) |
| MidGirth | * 24.8 ft - (7559 mm) |
| Foot | * 24.8 ft - (7559 mm) |
| Perc LP | * 180 |
| Area | 907.7 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 37.4 ft - (11400 mm) |
| Foot | * 12.63 ft - (3850 mm) |
| Leech-AftHdBd | * 38.9 ft - (11857 mm) |
| Tack Ang | * 88.02 ° |
| Diag (clew/head) | * 39.06 ft - (11905 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 235.91 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 43.06 ft - (13125 mm) |
| Foot | * 22.25 ft - (6782 mm) |
| Leech | * 40.51 ft - (12347 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 20.67 ft - (6300 mm) |
| Deck Angle | * 4 ° |
| Area | 445.13 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
