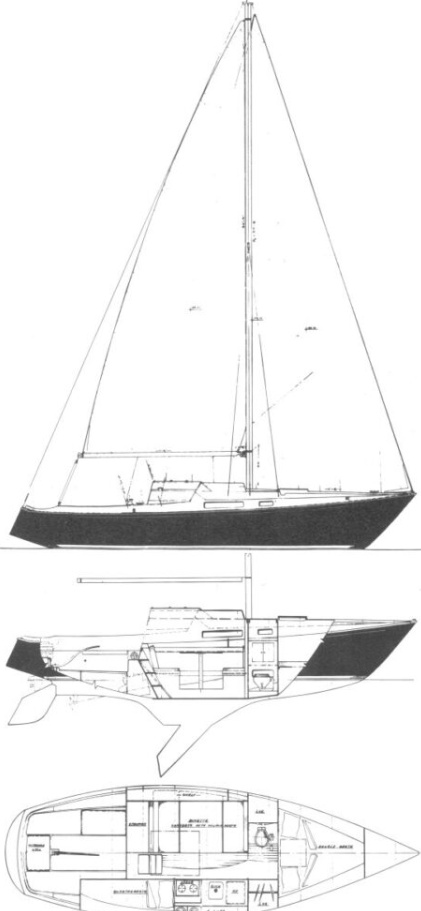

NORTHWIND 29
Description
LWL 22 Beam 9.16 Draft: Shoal Keel Down 6.75 Shoal Keel up 3.083 Displacement 0 Ballast 3130
Construction Details
| Designer | Cuthbertson and Cassian |
|---|---|
| Length | 28.800 ft |
| LOA | 61.020 ft |
| LWL | 47.240 ft |
| Beam | 16.830 ft |
| Displacement | 19841 lb |
| Max Draft | 7.220 ft |
The standard boat dimensions
| i | 34.50 ft |
|---|---|
| j | 11.50 ft |
| p | 30.50 ft |
| e | 11.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 34.50 ft | 11.50 ft | 30.50 ft | 11.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 30.5 ft - (9296 mm) |
| Foot | * 11.5 ft - (3505 mm) |
| Leech-AftHdBd | * 31.91 ft - (9726 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 32.22 ft - (9821 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 180.22 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 34.55 ft - (10531 mm) |
| Foot | * 18.66 ft - (5688 mm) |
| Leech | * 32.41 ft - (9879 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 17.25 ft - (5258 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 298.01 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.09 ft - (8867 mm) |
| Foot | * 15.33 ft - (4673 mm) |
| Leech | * 25.09 ft - (7647 mm) |
| Percentage LP | * 114.96 % |
| Length Perpendicular | * 13.22 ft - (4029 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 192.26 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 34.55 ft - (10531 mm) |
| MidGirth | * 20.7 ft - (6309 mm) |
| Foot | * 20.7 ft - (6309 mm) |
| Perc LP | * 180 |
| Area | * 608 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
