NORTH STAR 80/20 KETCH
Description
The NORTH STAR 80/20 KETCH is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 40.000 ft |

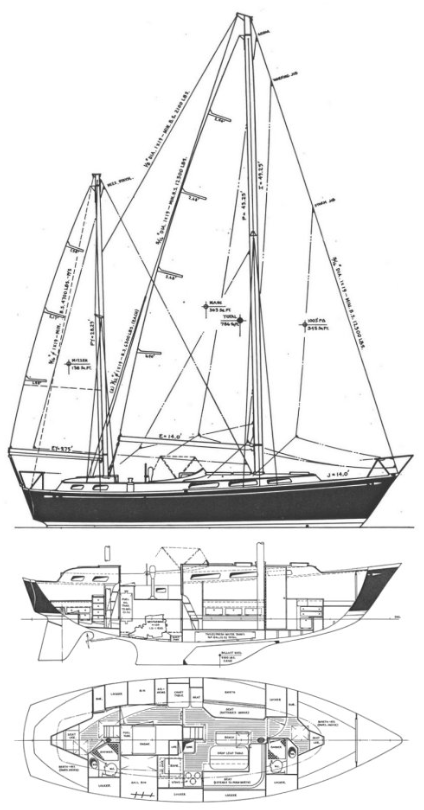

The standard boat dimensions
| i | 49.25 ft |
|---|---|
| j | 14 ft |
| p | 43.25 ft |
| e | 14 ft |
| p2 | 27.75 ft |
| e2 | 9.75 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 49.25 ft | 14 ft | 43.25 ft | 14 ft | 27.75 ft | 9.75 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 48.64 ft - (14825 mm) |
| Foot | * 22.33 ft - (6806 mm) |
| Leech | * 46.11 ft - (14054 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 21 ft - (6401 mm) |
| Deck Angle | * 4 ° |
| Area | 510.73 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 40.96 ft - (12485 mm) |
| Foot | * 18.21 ft - (5550 mm) |
| Leech | * 36.22 ft - (11040 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 16.1 ft - (4907 mm) |
| Deck Angle | * 12 ° |
| Area | 329.67 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 27.75 ft - (8458 mm) |
| Foot | * 9.75 ft - (2972 mm) |
| Leech-AftHdBd | * 28.97 ft - (8830 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 29.09 ft - (8867 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | 135.13 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 43.25 ft - (13183 mm) |
| Foot | * 14 ft - (4267 mm) |
| Leech-AftHdBd | * 44.72 ft - (13631 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 44.99 ft - (13713 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 312 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
