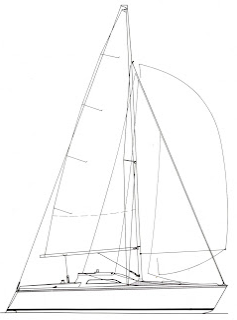

NORTH STAR 727 / FARR 727
Description
The NORTH STAR 727 / FARR 727 is a small sailboat designed by Bruce Farr. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Bruce Farr |
|---|---|
| Length | 24.000 ft |
| LOA | 23.830 ft |
| LWL | 19.580 ft |
| Beam | 8.330 ft |
| Displacement | 2700 lb |
| Max Draft | 4.670 ft |
The standard boat dimensions
| i | 24.40 ft |
|---|---|
| j | 7.81 ft |
| p | 25.72 ft |
| e | 10.86 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 24.40 ft | 7.81 ft | 25.72 ft | 10.86 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 25.72 ft - (7839 mm) |
| Foot | * 10.86 ft - (3310 mm) |
| Leech-AftHdBd | * 27.36 ft - (8339 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 27.57 ft - (8403 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 143.85 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 24.34 ft - (7419 mm) |
| Foot | * 12.62 ft - (3847 mm) |
| Leech | * 22.89 ft - (6977 mm) |
| Percentage LP | * 150.06 % |
| Length Perpendicular | * 11.72 ft - (3572 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 142.64 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 20.5 ft - (6248 mm) |
| Foot | * 10.34 ft - (3152 mm) |
| Leech | * 17.8 ft - (5425 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 8.98 ft - (2737 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 92.02 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 24.34 |
| MidGirth | * 14.06 ft - (4285 mm) |
| Foot | * 14.06 ft - (4285 mm) |
| Perc LP | * 180 |
| Area | * 291 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 24.33 ft - (7416 mm) |
| Foot | 12.875 ft - (3924 mm) |
| Leech | 23 ft - (7010 mm) |
| Percentage LP | * 153.52 % |
| Length Perpendicular | * 11.99 ft - (3655 mm) |
| Deck Angle | * 3.66 ° |
| Area | * 145.81 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
