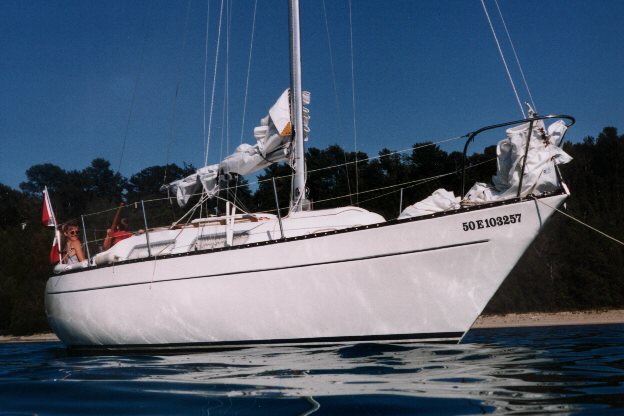

NORTH STAR 600
Description
The NORTH STAR 600 is a compact cruiser designed by Sparkman & Stephens. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Sparkman & Stephens |
|---|---|
| Length | 26.000 ft |
| LOA | 25.960 ft |
| LWL | 20.250 ft |
| Beam | 9.000 ft |
| Displacement | 4598 lb |
| Max Draft | 4.000 ft |
The standard boat dimensions
| i | 31 ft |
|---|---|
| j | 11 ft |
| p | 26.50 ft |
| e | 9.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 31 ft | 11 ft | 26.50 ft | 9.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 26.5 ft - (8077 mm) |
| Foot | * 9.5 ft - (2896 mm) |
| Leech-AftHdBd | * 27.63 ft - (8422 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 27.84 ft - (8486 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 130.11 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 32.25 ft - (9830 mm) |
| Foot | 18 ft - (5486 mm) |
| Leech | 30 ft - (9144 mm) |
| Perc LP | * 165 |
| Area | * 435 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 31.25 ft - (9525 mm) |
| Foot | * 18 ft - (5486 mm) |
| Leech | * 29.17 ft - (8891 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 16.5 ft - (5029 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 257.81 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 16.75 ft - (5105 mm) |
| Leech | 28 ft - (8534 mm) |
| Percentage LP | * 139.91 % |
| Length Perpendicular | * 15.39 ft - (4691 mm) |
| Deck Angle | * 3.7 ° |
| Area | * 230.86 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 27 ft - (8230 mm) |
| Foot | 13.5 ft - (4115 mm) |
| Leech | 24.25 ft - (7391 mm) |
| Percentage LP | * 110 % |
| Length Perpendicular | * 12.1 ft - (3688 mm) |
| Deck Angle | * 6.78 ° |
| Area | * 163.36 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 31.25 |
| MidGirth | * 19.8 ft - (6035 mm) |
| Foot | * 19.8 ft - (6035 mm) |
| Perc LP | * 180 |
| Area | * 526 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
