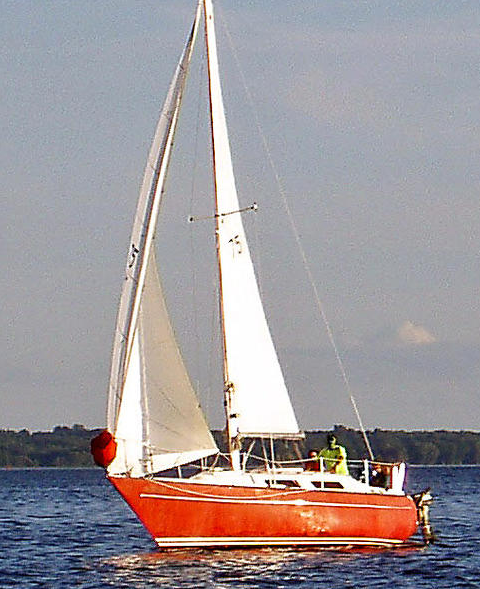

NORTH STAR 26
Description
The NORTH STAR 26 is a compact cruiser designed by Sparkman and Stephens. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Sparkman and Stephens |
|---|---|
| Length | 26.000 ft |
| LOA | 26.000 ft |
| LWL | 20.250 ft |
| Beam | 9.000 ft |
| Displacement | 4598 lb |
| Max Draft | 4.000 ft |
The standard boat dimensions
| i | 31 ft |
|---|---|
| j | 11 ft |
| p | 26.50 ft |
| e | 9.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 31 ft | 11 ft | 26.50 ft | 9.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 26.5 ft - (8077 mm) |
| Foot | * 9.5 ft - (2896 mm) |
| Leech-AftHdBd | * 27.63 ft - (8422 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 27.84 ft - (8486 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 130.11 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 31.25 ft - (9525 mm) |
| Foot | * 18 ft - (5486 mm) |
| Leech | * 29.17 ft - (8891 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 16.5 ft - (5029 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 257.81 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 26.32 ft - (8022 mm) |
| Foot | * 14.84 ft - (4523 mm) |
| Leech | * 22.46 ft - (6846 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.65 ft - (3856 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 166.46 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 31.25 ft - (9525 mm) |
| MidGirth | * 19.8 ft - (6035 mm) |
| Foot | * 19.8 ft - (6035 mm) |
| Perc LP | * 180 |
| Area | * 526 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
