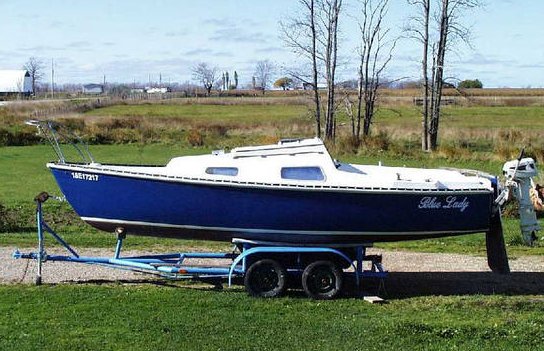

NORTH STAR 22
Description
The NORTH STAR 22 is a small sailboat. With her light displacement hull, she offers spirited performance, featuring variable draft for versatility in different sailing conditions. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 22.000 ft |
| LOA | 22.000 ft |
| LWL | 19.500 ft |
| Beam | 7.580 ft |
| Displacement | 2200 lb |
| Max Draft | 6.000 ft |
| Min Draft | 1.670 ft |
The standard boat dimensions
| i | 26.58 ft |
|---|---|
| j | 7.92 ft |
| p | 22 ft |
| e | 9.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26.58 ft | 7.92 ft | 22 ft | 9.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 26.35 ft - (8031 mm) |
| MidGirth | * 14.26 ft - (4346 mm) |
| Foot | * 14.26 ft - (4346 mm) |
| Perc LP | * 180 |
| Area | * 319 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 27 ft - (8230 mm) |
| Foot | 14 ft - (4267 mm) |
| Leech | 24.5 ft - (7468 mm) |
| Perc LP | * 165 |
| Area | * 284 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 22 ft - (6706 mm) |
| Foot | * 9.5 ft - (2896 mm) |
| Leech-AftHdBd | * 23.45 ft - (7148 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 23.66 ft - (7212 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 108.1 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 26.33 ft - (8025 mm) |
| Foot | 12.67 ft - (3862 mm) |
| Leech | 25 ft - (7620 mm) |
| Percentage LP | * 150.25 % |
| Length Perpendicular | * 11.9 ft - (3627 mm) |
| Deck Angle | * 3.46 ° |
| Area | * 156.69 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 22.19 ft - (6764 mm) |
| Foot | * 10.37 ft - (3161 mm) |
| Leech | * 19.5 ft - (5944 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 9.11 ft - (2777 mm) |
| Deck Angle | * 11.92 ° |
| Area | * 101.1 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
