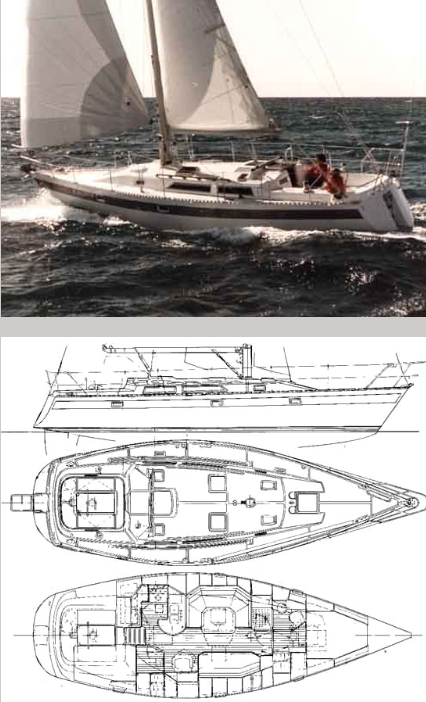

NORSMAN 400
Description
The NORSMAN 400 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 40.000 ft |
The standard boat dimensions
| i | 50 ft |
|---|---|
| j | 16.35 ft |
| p | 46.25 ft |
| e | 14 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 50 ft | 16.35 ft | 46.25 ft | 14 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 46.25 ft - (14097 mm) |
| Foot | * 14 ft - (4267 mm) |
| Leech-AftHdBd | * 47.71 ft - (14542 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 47.85 ft - (14585 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 323.42 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 49.98 ft - (15234 mm) |
| Foot | * 26.47 ft - (8068 mm) |
| Leech | * 46.93 ft - (14304 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 24.53 ft - (7477 mm) |
| Deck Angle | * 4 ° |
| Area | 612.81 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 42.08 ft - (12826 mm) |
| Foot | * 21.73 ft - (6623 mm) |
| Leech | * 36.41 ft - (11098 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 18.8 ft - (5730 mm) |
| Deck Angle | * 12 ° |
| Area | 395.54 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 49.98 ft - (15234 mm) |
| MidGirth | * 29.43 ft - (8970 mm) |
| Foot | * 29.43 ft - (8970 mm) |
| Perc LP | * 180 |
| Area | 1250.27 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
