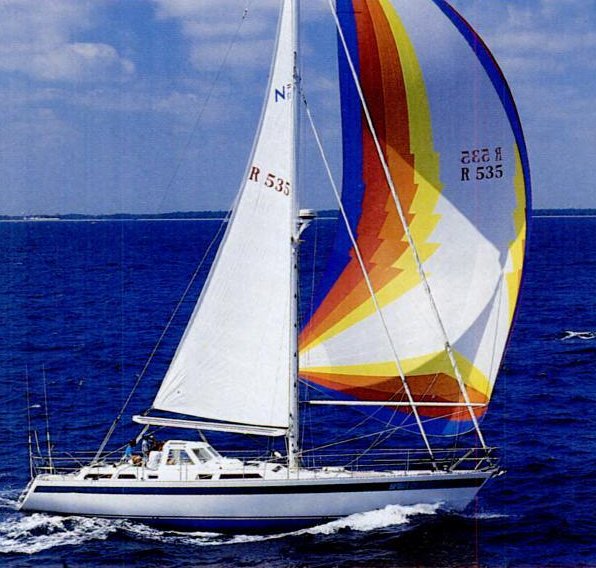

NORSEMAN 535 SLOOP
Description
The NORSEMAN 535 SLOOP is a luxury yacht. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. Built for luxury cruising anywhere in the world with style and comfort.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 53.000 ft |
| LOA | 53.420 ft |
| LWL | 44.670 ft |
| Beam | 14.830 ft |
| Displacement | 36000 lb |
| Max Draft | 6.500 ft |
The standard boat dimensions
| i | 63.75 ft |
|---|---|
| j | 21.75 ft |
| p | 58 ft |
| e | 21 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 63.75 ft | 21.75 ft | 58 ft | 21 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 53.89 ft - (16426 mm) |
| Foot | * 29.13 ft - (8879 mm) |
| Leech | * 46.3 ft - (14112 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 25.01 ft - (7623 mm) |
| Deck Angle | * 12 ° |
| Area | 674 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 58 ft - (17678 mm) |
| Foot | * 21 ft - (6401 mm) |
| Leech-AftHdBd | * 60.82 ft - (18538 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 60.99 ft - (18590 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 608.42 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 63.99 ft - (19504 mm) |
| Foot | * 35.4 ft - (10790 mm) |
| Leech | * 59.91 ft - (18261 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 32.63 ft - (9946 mm) |
| Deck Angle | * 4 ° |
| Area | 1043.8 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 63.99 ft - (19504 mm) |
| MidGirth | * 39.15 ft - (11933 mm) |
| Foot | * 39.15 ft - (11933 mm) |
| Perc LP | * 180 |
| Area | 2129.43 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
