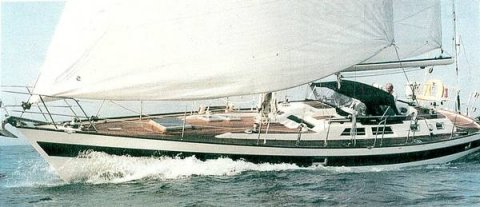

NORSEMAN 447
Description
The NORSEMAN 447 is a performance cruiser designed by Robert Perry. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. A true blue water cruiser capable of comfortable ocean passages.
Construction Details
| Designer | Robert Perry |
|---|---|
| Length | 45.000 ft |
| LOA | 44.580 ft |
| LWL | 37.500 ft |
| Beam | 13.000 ft |
| Displacement | 28000 lb |
| Max Draft | 6.330 ft |
The standard boat dimensions
| i | 56 ft |
|---|---|
| j | 18.75 ft |
| p | 51 ft |
| e | 16 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 56 ft | 18.75 ft | 51 ft | 16 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 56.1 ft - (17099 mm) |
| Foot | * 30.94 ft - (9431 mm) |
| Leech | * 51.61 ft - (15731 mm) |
| Perc LP | * 165 |
| Area | * 1302 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 51 ft - (15545 mm) |
| Foot | * 16 ft - (4877 mm) |
| Leech-AftHdBd | * 52.65 ft - (16048 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 52.92 ft - (16130 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 418.87 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 56.1 ft - (17099 mm) |
| Foot | * 30.44 ft - (9278 mm) |
| Leech | * 52.59 ft - (16029 mm) |
| Percentage LP | * 149.97 % |
| Length Perpendicular | * 28.12 ft - (8571 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 788.73 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 47.24 ft - (14399 mm) |
| Foot | * 25.03 ft - (7629 mm) |
| Leech | * 40.7 ft - (12405 mm) |
| Percentage LP | * 114.99 % |
| Length Perpendicular | * 21.56 ft - (6571 mm) |
| Deck Angle | * 12.03 ° |
| Area | * 509.2 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 55 ft - (16764 mm) |
| Foot | 19.167 ft - (5842 mm) |
| Leech | 49 ft - (14935 mm) |
| Percentage LP | * 90.24 % |
| Length Perpendicular | * 16.92 ft - (5157 mm) |
| Deck Angle | * 9.54 ° |
| Area | * 465.19 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
