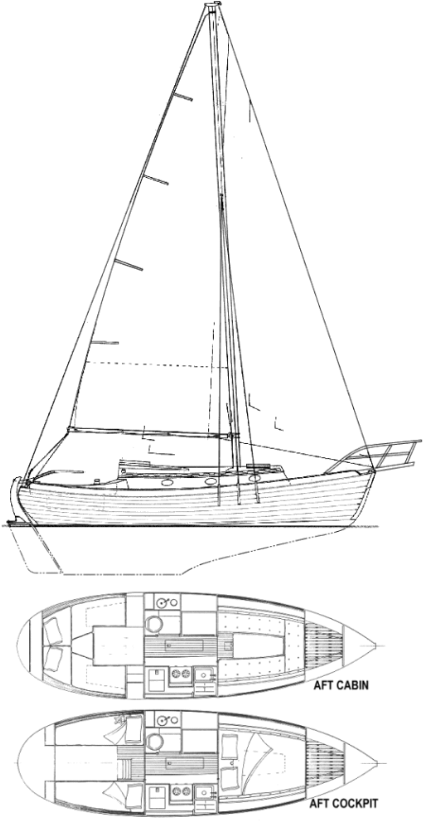

NorSea 27 Short Rig
Description
The NorSea 27 Short Rig is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 27.000 ft |
The standard boat dimensions
| i | 31 ft |
|---|---|
| j | 10.50 ft |
| p | 27 ft |
| e | 12.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 31 ft | 10.50 ft | 27 ft | 12.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 27 ft - (8230 mm) |
| Foot | * 12.25 ft - (3734 mm) |
| Leech-AftHdBd | * 29.01 ft - (8842 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 29.26 ft - (8918 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 170.51 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 17.5 ft - (5334 mm) |
| Leech | 27.67 ft - (8434 mm) |
| Percentage LP | * 151.24 % |
| Length Perpendicular | * 15.88 ft - (4840 mm) |
| Deck Angle | * 6.1 ° |
| Area | * 238.27 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 12.33 ft - (3758 mm) |
| Leech | 26.58 ft - (8102 mm) |
| Percentage LP | * 103.81 % |
| Length Perpendicular | * 10.9 ft - (3322 mm) |
| Deck Angle | * 9.13 ° |
| Area | * 163.54 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 32 ft - (9754 mm) |
| Foot | 17 ft - (5182 mm) |
| Leech | 30 ft - (9144 mm) |
| Perc LP | * 165 |
| Area | * 408 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 16.25 ft - (4953 mm) |
| Leech | 26.33 ft - (8025 mm) |
| Percentage LP | * 135.52 % |
| Length Perpendicular | * 14.23 ft - (4337 mm) |
| Deck Angle | * 10.16 ° |
| Area | * 213.45 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 29.75 ft - (9068 mm) |
| Foot | 16.5 ft - (5029 mm) |
| Leech | 28 ft - (8534 mm) |
| Percentage LP | * 145.33 % |
| Length Perpendicular | * 15.26 ft - (4651 mm) |
| Deck Angle | * 3.64 ° |
| Area | * 227 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 26 ft - (7925 mm) |
| Foot | 10.42 ft - (3176 mm) |
| Leech | 20.75 ft - (6325 mm) |
| Percentage LP | * 75.14 % |
| Length Perpendicular | * 7.89 ft - (2405 mm) |
| Deck Angle | * 22.08 ° |
| Area | * 102.55 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 22 ft - (6706 mm) |
| Foot | 8.83 ft - (2691 mm) |
| Leech | 16 ft - (4877 mm) |
| Perc LP | * 51.81 |
| Length Perp | * 5.44 |
| Deck Angle | * 33.24 ° |
| Area | * 59.86 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
