Norsea 27
Description

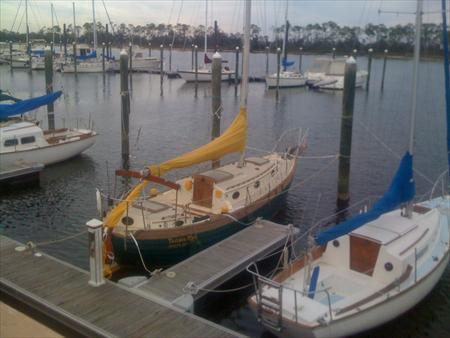

The Norsea 27 is a sailboat designed by Lyle Hess. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 35.50 ft |
|---|---|
| j | 10.50 ft |
| p | 31.50 ft |
| e | 12.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 35.50 ft | 10.50 ft | 31.50 ft | 12.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 36 ft - (10973 mm) |
| Foot | 18 ft - (5486 mm) |
| Leech | 33 ft - (10058 mm) |
| Perc LP | * 165 |
| Area | * 486 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 20.36 ft - (6206 mm) |
| Foot | * 7.74 ft - (2359 mm) |
| Leech | * 17.07 ft - (5203 mm) |
| Perc LP | * 60 |
| Length Perp | * 6.3 |
| Deck Angle | * 19.03 ° |
| Area | * 64.14 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 31.5 ft - (9601 mm) |
| Foot | * 12.25 ft - (3734 mm) |
| Leech-AftHdBd | * 33.16 ft - (10107 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 33.4 ft - (10180 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 198.91 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.62 ft - (9028 mm) |
| Foot | * 13.74 ft - (4188 mm) |
| Leech | * 26.04 ft - (7937 mm) |
| Percentage LP | * 115.05 % |
| Length Perpendicular | * 12.08 ft - (3682 mm) |
| Deck Angle | * 12 ° |
| Area | * 178.88 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 12.71 ft - (3874 mm) |
| Foot | * 11.68 ft - (3560 mm) |
| Leech | * 10.59 ft - (3228 mm) |
| Length Perp | * 10.59 |
| Tack Angle | * -25 ° |
| Area | * 58 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 31.5 ft - (9601 mm) |
| Foot | 12.25 ft - (3734 mm) |
| Leech | 32 ft - (9754 mm) |
| Perc LP | * 115.33 |
| Length Perp | * 12.11 |
| Deck Angle | * -7.66 ° |
| Area | * 190.66 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 34.25 ft - (10439 mm) |
| Foot | 15 ft - (4572 mm) |
| Leech | 32.5 ft - (9906 mm) |
| Percentage LP | * 134.76 % |
| Length Perpendicular | * 14.15 ft - (4313 mm) |
| Deck Angle | * 2.95 ° |
| Area | * 242.24 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
