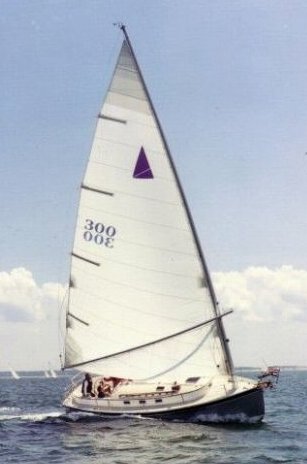

Nonsuch 30
Description
L.W.L.: 28' 9" (8.76 m) Beam: 11' 10" (3.38 m) Draft: 5' 0" (1.51 m) Displ: 11,500 lbs. (5216 kg.) Ballast: 4500 lbs. (2041 kg.)
Construction Details
| Designer | Mark Ellis |
|---|---|
| Length | 30.330 ft |
| LOA | 30.330 ft |
| LWL | 28.750 ft |
| Beam | 11.920 ft |
| Displacement | 10500 lb |
| Max Draft | 5.000 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 45 ft |
| e | 24 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | 45 ft | 24 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 45 ft - (13716 mm) |
| Foot | * 24 ft - (7315 mm) |
| Leech | * 49.96 ft - (15228 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 50.26 ft - (15319 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 549.69 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
