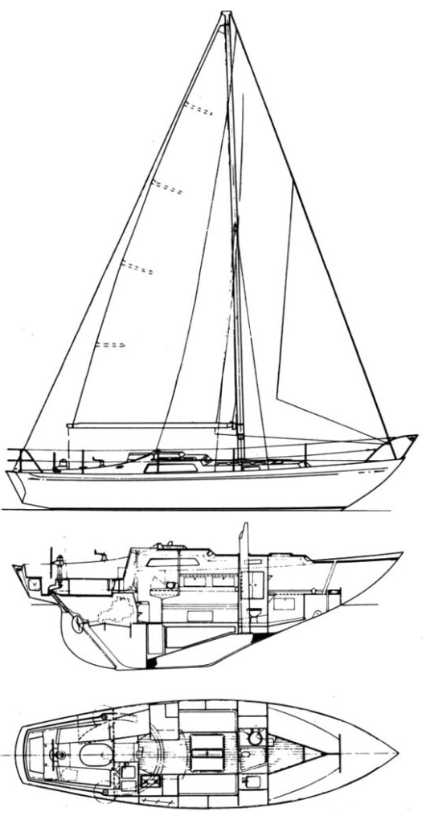

Nicholson 32 Mk X
Description
The Nicholson 32 Mk X (also called Nic 32 Mk X or part of the Nicholson 32 Mk X/XI series in some records) is a later, significantly updated evolution of the classic Camper & Nicholsons 32 bluewater cruiser. Introduced around 1972 (hull numbers roughly 237–329 for Mk X), it incorporated major modernization and restyling while retaining the boat's legendary seaworthiness, robust GRP construction, and long-keel stability. Later Mk XI variants (from ~1977–1983, often sold directly by Halmatic) built on this with minor cost-reduction tweaks but are very similar. The Mk X represented the most substantial redesign in the series (no Mk IX existed), addressing feedback for more space, modernity, and practicality without sacrificing the "go-anywhere" pedigree. Many owners consider Mk X/XI the most desirable marks due to improved accommodations, better fit-out, and a more contemporary look compared to earlier models.
Construction Details
| Designer | Charles A. Nicholson |
|---|---|
| Builder | Camper and Nicholsons |
| Length | 33.000 ft |
| LOA | 33.000 ft |
| LWL | 24.000 ft |
| Beam | 9.250 ft |
| Displacement | 13664 lb |
| Ballast | 6720 lb |
| Max Draft | 5.500 ft |
| Year Built | 1972 |
The standard boat dimensions
| i | 38.25 ft |
|---|---|
| j | 12.50 ft |
| p | 33.08 ft |
| e | 13.67 ft |
| p2 | 18 ft |
| e2 | 7.66 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 38.25 ft | 12.50 ft | 33.08 ft | 13.67 ft | 18 ft | 7.66 ft | - | - |
Sails
Nicholson 32 Mk X - MAINSAIL
| Luff | * 33.08 ft - (10083 mm) |
|---|---|
| Foot | * 13.67 ft - (4167 mm) |
| Leech | * 35.07 ft - (10689 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 35.35 ft - (10775 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 233.25 ft² |
| Edit in Calculator | |
Nicholson 32 Mk X - JIBSAIL
| Luff | * 32.19 ft - (9812 mm) |
|---|---|
| Foot | * 16.62 ft - (5066 mm) |
| Leech | * 27.86 ft - (8492 mm) |
| Percentage LP | * 115.04 % |
| Length Perpendicular | * 14.38 ft - (4383 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 231.48 ft² |
| Edit in Calculator | |
Nicholson 32 Mk X - GENOA
| Luff | * 38.23 ft - (11653 mm) |
|---|---|
| Foot | * 20.24 ft - (6169 mm) |
| Leech | * 35.89 ft - (10939 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.75 ft - (5715 mm) |
| Deck Angle | * 4.04 ° |
| Area | * 358.37 ft² |
| Edit in Calculator | |
Nicholson 32 Mk X - ASYMMETRICAL
| Luff | 39 ft - (11887 mm) |
|---|---|
| Foot | 21 ft - (6401 mm) |
| Leech | 37 ft - (11278 mm) |
| Perc LP | * 165 % |
| Area | * 614 ft² |
| Edit in Calculator | |
