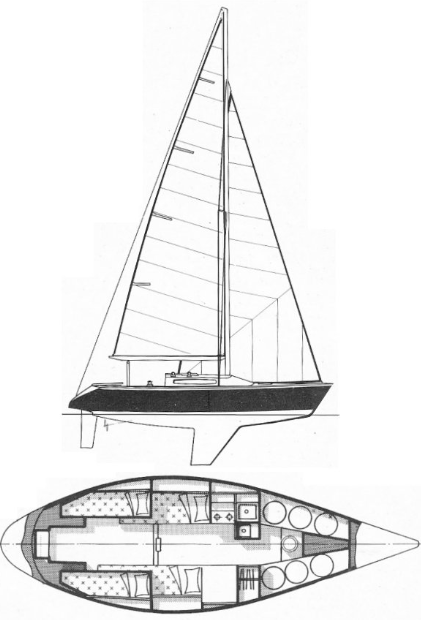

NICHOLSON 1/2 TON S
Description
The NICHOLSON 1/2 TON S is a mid-sized cruiser. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 30.000 ft |
| LOA | 30.000 ft |
| LWL | 24.750 ft |
| Beam | 10.250 ft |
| Displacement | 5952 lb |
| Max Draft | 5.750 ft |
The standard boat dimensions
| i | 38.80 ft |
|---|---|
| j | 11.70 ft |
| p | 33.25 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 38.80 ft | 11.70 ft | 33.25 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 33.25 ft - (10135 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech-AftHdBd | * 34.28 ft - (10449 mm) |
| Tack Ang | * 88.03 ° |
| Diag (clew/head) | * 34.39 ft - (10482 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | 166.08 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 32.42 ft - (9882 mm) |
| Foot | * 15.35 ft - (4679 mm) |
| Leech | * 28.42 ft - (8662 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.46 ft - (4103 mm) |
| Deck Angle | * 12 ° |
| Area | 218.11 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 38.5 ft - (11735 mm) |
| MidGirth | * 21.06 ft - (6419 mm) |
| Foot | * 21.06 ft - (6419 mm) |
| Perc LP | * 180 |
| Area | 689.19 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 38.5 ft - (11735 mm) |
| Foot | * 18.77 ft - (5721 mm) |
| Leech | * 36.36 ft - (11083 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 17.55 ft - (5349 mm) |
| Deck Angle | * 4 ° |
| Area | 337.84 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
