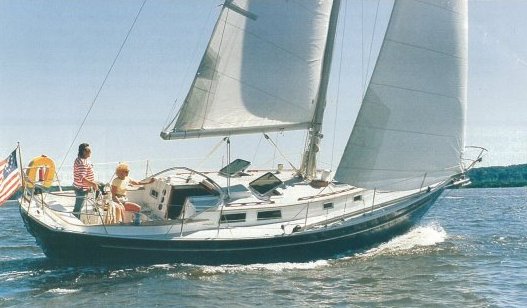

NIAGARA 35
Description
L.W.L.: 26' 9" (8.15 m) Beam: 11' 5" (3.48 m) Draft: 5' 2" (1.57 m) Displ: 15,000 lbs (6804 kg.) Ballast: 5500 lbs. (2495 kg.)
Construction Details
| Designer | Mark Ellis |
|---|---|
| Length | 35.080 ft |
| LOA | 35.080 ft |
| LWL | 26.670 ft |
| Beam | 11.420 ft |
| Displacement | 14000 lb |
| Max Draft | 5.170 ft |
The standard boat dimensions
| i | 45 ft |
|---|---|
| j | 16 ft |
| p | 38 ft |
| e | 12.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 45 ft | 16 ft | 38 ft | 12.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 46.5 ft - (14173 mm) |
| Foot | 27 ft - (8230 mm) |
| Leech | 43 ft - (13106 mm) |
| Perc LP | * 165 |
| Area | * 942 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 43 ft - (13106 mm) |
| Foot | 23.25 ft - (7087 mm) |
| Leech | 35.75 ft - (10897 mm) |
| Percentage LP | * 120.81 % |
| Length Perpendicular | * 19.33 ft - (5892 mm) |
| Deck Angle | * 14.2 ° |
| Area | * 415.52 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 44 ft - (13411 mm) |
| Foot | 23.5 ft - (7163 mm) |
| Leech | 41 ft - (12497 mm) |
| Percentage LP | * 135.25 % |
| Length Perpendicular | * 21.64 ft - (6596 mm) |
| Deck Angle | * 3.4 ° |
| Area | * 475.98 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 22 ft - (6706 mm) |
| Foot | 11 ft - (3353 mm) |
| Leech | 17.5 ft - (5334 mm) |
| Perc LP | * 54.06 |
| Length Perp | * 8.65 |
| Deck Angle | * 18.54 ° |
| Area | * 95.2 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 44 ft - (13411 mm) |
| Foot | 21 ft - (6401 mm) |
| Leech | 40.5 ft - (12344 mm) |
| Percentage LP | * 120.38 % |
| Length Perpendicular | * 19.26 ft - (5870 mm) |
| Deck Angle | * 3.92 ° |
| Area | * 423.7 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 38 ft - (11582 mm) |
| Foot | * 12.5 ft - (3810 mm) |
| Leech-AftHdBd | * 39.32 ft - (11985 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 39.59 ft - (12067 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 245.66 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 45.37 ft - (13829 mm) |
| Foot | * 26.19 ft - (7983 mm) |
| Leech | * 42.34 ft - (12905 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 24 ft - (7315 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 544.4 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 38.21 ft - (11646 mm) |
| Foot | * 21.6 ft - (6584 mm) |
| Leech | * 32.59 ft - (9933 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 18.4 ft - (5608 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 351.55 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 45.37 |
| MidGirth | * 28.8 ft - (8778 mm) |
| Foot | * 28.8 ft - (8778 mm) |
| Perc LP | * 180 |
| Area | * 1111 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
