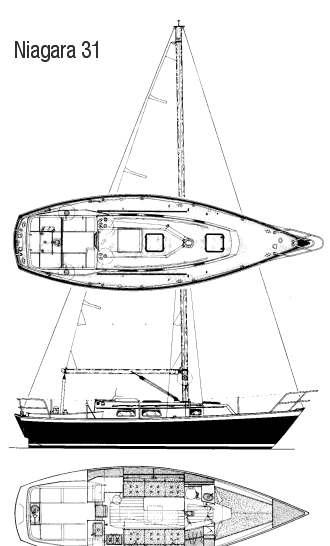

NIAGARA 31
Description
L.W.L.: 24' 3" (7.39 m) Beam: 10' 4" (3.14 m) Draft: 5' 0" (1.52 m) Displacement: 8500 lbs. (3855 kg.) Ballast: 3500 lbs. (1610 kg.)
Construction Details
| Designer | German Frers |
|---|---|
| Length | 31.250 ft |
| LOA | 30.000 ft |
| LWL | 23.500 ft |
| Beam | 8.500 ft |
| Displacement | 4000 lb |
| Max Draft | 4.160 ft |
The standard boat dimensions
| i | 43 ft |
|---|---|
| j | 12.41 ft |
| p | 36 ft |
| e | 12.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 43 ft | 12.41 ft | 36 ft | 12.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 42.52 ft - (12960 mm) |
| Foot | * 20.48 ft - (6242 mm) |
| Leech | * 39.12 ft - (11924 mm) |
| Perc LP | * 165 |
| Area | * 653 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 41.5 ft - (12649 mm) |
| Foot | 13.75 ft - (4191 mm) |
| Leech | 38.25 ft - (11659 mm) |
| Percentage LP | * 101.85 % |
| Length Perpendicular | * 12.64 ft - (3853 mm) |
| Deck Angle | * 7.03 ° |
| Area | * 262.38 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 36 ft - (10973 mm) |
| Foot | * 12.5 ft - (3810 mm) |
| Leech-AftHdBd | * 37.42 ft - (11406 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 37.69 ft - (11488 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 232.76 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 42.52 ft - (12960 mm) |
| Foot | * 19.83 ft - (6044 mm) |
| Leech | * 40.26 ft - (12271 mm) |
| Percentage LP | * 150.04 % |
| Length Perpendicular | * 18.62 ft - (5675 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 395.84 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 35.8 ft - (10912 mm) |
| Foot | * 16.18 ft - (4932 mm) |
| Leech | * 31.58 ft - (9626 mm) |
| Percentage LP | * 114.99 % |
| Length Perpendicular | * 14.27 ft - (4349 mm) |
| Deck Angle | * 12.03 ° |
| Area | * 255.42 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 42.52 |
| MidGirth | * 22.34 ft - (6809 mm) |
| Foot | * 22.34 ft - (6809 mm) |
| Perc LP | * 180 |
| Area | * 807 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
