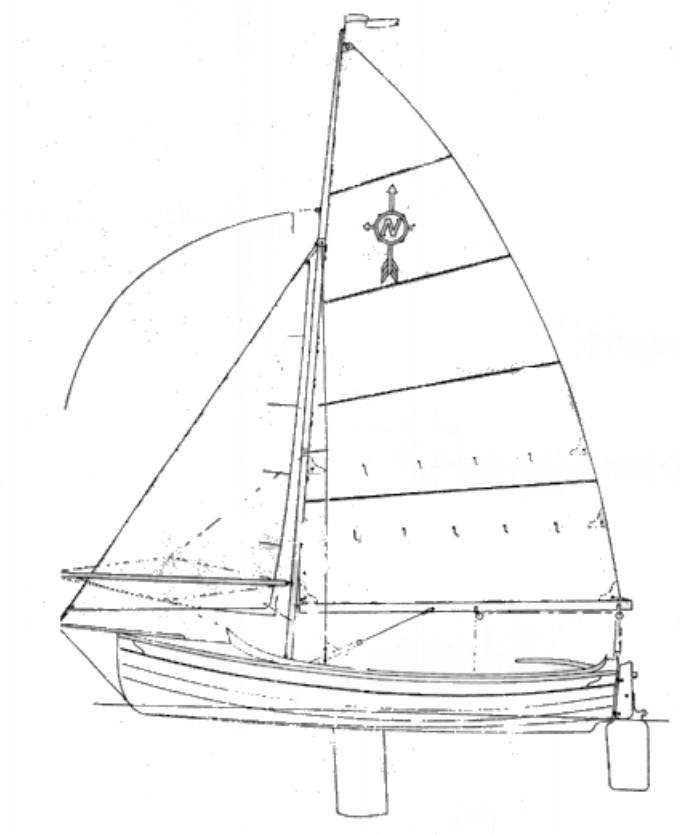

Navigator Racing Sloop
Description
The Navigator Racing Sloop is a sailboat designed by John Welsford.
The standard boat dimensions
| i | 12.80 ft |
|---|---|
| j | 8.14 ft |
| p | 19.85 ft |
| e | 10.17 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 12.80 ft | 8.14 ft | 19.85 ft | 10.17 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 19.36 ft - (5901 mm) |
| Foot | 9.68 ft - (2950 mm) |
| Leech-AftHdBd | * 20.15 ft - (6142 mm) |
| Tack Ang | * 81.62 ° |
| Diag (clew/head) | 20.344 ft - (6201 mm) |
| Head (inches) | 3.94 in |
| Area (no Roach) | * 95.38 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 12.797 ft - (3901 mm) |
| Foot | 7.318 ft - (2231 mm) |
| Leech | 11.484 ft - (3500 mm) |
| Percentage LP | * 108.5 % |
| Length Perpendicular | * 6.51 ft - (1984 mm) |
| Deck Angle | * 7.59 ° |
| Area | * 41.67 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | 12.797 ft - (3901 mm) |
| MidGirth | 10.499 ft - (3200 mm) |
| Foot | 9.843 ft - (3000 mm) |
| Perc LP | * 180 |
| Area | * 107 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
