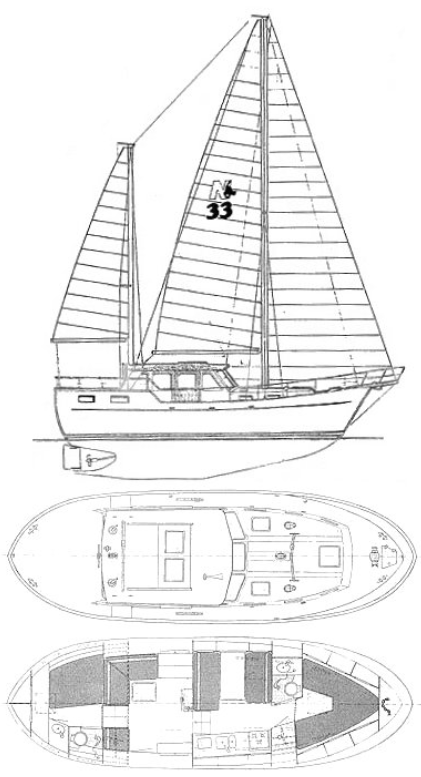

NAUTICAT 33 KETCH
Description
The NAUTICAT 33 KETCH is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 33.000 ft |
The standard boat dimensions
| i | 40.68 ft |
|---|---|
| j | 13.71 ft |
| p | 35.11 ft |
| e | 11.16 ft |
| p2 | 20.51 ft |
| e2 | 8.04 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 40.68 ft | 13.71 ft | 35.11 ft | 11.16 ft | 20.51 ft | 8.04 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 41 ft - (12497 mm) |
| Foot | 23.25 ft - (7087 mm) |
| Leech | 38.5 ft - (11735 mm) |
| Perc LP | * 165 |
| Area | * 715 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 40.78 ft - (12430 mm) |
| MidGirth | * 24.68 ft - (7522 mm) |
| Foot | * 24.68 ft - (7522 mm) |
| Perc LP | * 180 |
| Area | * 855 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 39.75 ft - (12116 mm) |
| Foot | 20 ft - (6096 mm) |
| Leech | 37.167 ft - (11329 mm) |
| Percentage LP | * 135.16 % |
| Length Perpendicular | * 18.53 ft - (5648 mm) |
| Deck Angle | * 3.49 ° |
| Area | * 368.25 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 39.75 ft - (12116 mm) |
| Foot | 19.25 ft - (5867 mm) |
| Leech | 37 ft - (11278 mm) |
| Percentage LP | * 129.91 % |
| Length Perpendicular | * 17.81 ft - (5428 mm) |
| Deck Angle | * 3.71 ° |
| Area | * 353.89 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 23.61 ft - (7196 mm) |
| Foot | * 10.39 ft - (3167 mm) |
| Leech | * 19.13 ft - (5831 mm) |
| Perc LP | * 60.03 |
| Length Perp | * 8.23 |
| Deck Angle | * 18.99 ° |
| Area | * 97.16 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 35.11 ft - (10702 mm) |
| Foot | * 11.16 ft - (3402 mm) |
| Leech-AftHdBd | * 36.23 ft - (11043 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 36.47 ft - (11116 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 202.45 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 40.78 ft - (12430 mm) |
| Foot | * 22.28 ft - (6791 mm) |
| Leech | * 38.2 ft - (11643 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 20.56 ft - (6267 mm) |
| Deck Angle | * 4.04 ° |
| Area | * 419.21 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 34.34 ft - (10467 mm) |
| Foot | * 18.32 ft - (5584 mm) |
| Leech | * 29.55 ft - (9007 mm) |
| Percentage LP | * 114.95 % |
| Length Perpendicular | * 15.76 ft - (4804 mm) |
| Deck Angle | * 12.04 ° |
| Area | * 270.58 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 20.51 ft - (6251 mm) |
| Foot | * 8.04 ft - (2451 mm) |
| Leech-AftHdBd | * 21.58 ft - (6578 mm) |
| Tack Ang | * 88.02 ° |
| Diag (clew/head) | * 21.77 ft - (6635 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 84.8 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 21.9 ft - (6675 mm) |
| Foot | 10.5 ft - (3200 mm) |
| Leech | 19.5 ft - (5944 mm) |
| Perc LP | * 68.2 |
| Length Perp | * 9.35 |
| Deck Angle | * 8.49 ° |
| Area | * 102.34 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
