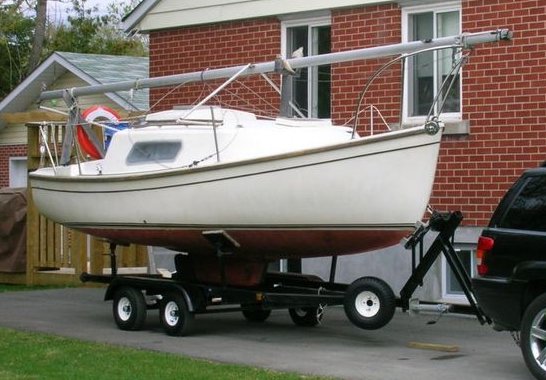

Nash 26
Description
L.W.L.: 21' 3" (6.48 m) Beam: 8' 6" (2.59 m) Draft: 3' 6" (1.07 m) Displacement: 5200 lbs.(2359 kg.) Ballast: 2100 lbs. (953 kg.)
Construction Details
| Designer | Joe Nash |
|---|---|
| Length | 26.000 ft |
| LOA | 20.000 ft |
| LWL | 18.580 ft |
| Beam | 7.500 ft |
| Displacement | 1900 lb |
| Max Draft | 6.000 ft |
| Min Draft | 1.670 ft |
The standard boat dimensions
| i | 31.25 ft |
|---|---|
| j | 10.40 ft |
| p | 29.50 ft |
| e | 8.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 31.25 ft | 10.40 ft | 29.50 ft | 8.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 29.5 ft - (8992 mm) |
| Foot | * 8.5 ft - (2591 mm) |
| Leech | * 30.23 ft - (9214 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 30.41 |
| Head (inches) | * 4 in |
| Area | * 129.55 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 26.35 ft - (8031 mm) |
| Foot | * 14.82 ft - (4517 mm) |
| Leech | * 22.63 ft - (6898 mm) |
| Percentage LP | * 122.21 % |
| Length Perpendicular | * 12.71 ft - (3874 mm) |
| Deck Angle | * 12.56 ° |
| Area | * 167.43 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 31.29 ft - (9537 mm) |
| Foot | * 17.98 ft - (5480 mm) |
| Leech | * 29.4 ft - (8961 mm) |
| Percentage LP | * 159.23 % |
| Length Perpendicular | * 16.56 ft - (5047 mm) |
| Deck Angle | * 4.5 ° |
| Area | * 259.11 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 30.25 ft - (9220 mm) |
| Foot | 16.83 ft - (5130 mm) |
| Leech | 28.5 ft - (8687 mm) |
| Percentage LP | * 149.71 % |
| Length Perpendicular | * 15.57 ft - (4746 mm) |
| Deck Angle | * 3.87 ° |
| Area | * 235.55 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 31.29 ft - (9537 mm) |
| Foot | * 17.16 ft - (5230 mm) |
| Leech | * 28.79 ft - (8775 mm) |
| Perc LP | * 165 % |
| Area | * 403 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 31.29 ft - (9537 mm) |
| MidGirth | * 18.72 ft - (5706 mm) |
| Foot | * 18.72 ft - (5706 mm) |
| Perc LP | * 180 % |
| Area | * 498 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
