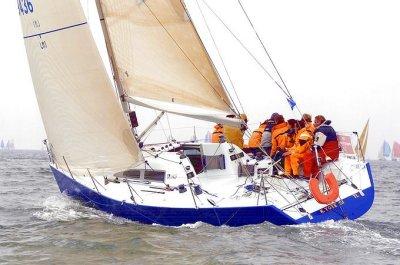

Mumm 36
Description
The Mumm 36 is a cruising yacht designed by Bruce Farr. This performance-oriented design emphasizes speed and agility, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Bruce Farr |
|---|---|
| Length | 35.830 ft |
| LOA | 35.830 ft |
| LWL | 31.750 ft |
| Beam | 11.830 ft |
| Displacement | 8150 lb |
| Max Draft | 7.330 ft |
The standard boat dimensions
| i | 43.70 ft |
|---|---|
| j | 12.60 ft |
| p | 44.70 ft |
| e | 16.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 43.70 ft | 12.60 ft | 44.70 ft | 16.50 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 44.7 ft - (13625 mm) |
| Foot | * 16.5 ft - (5029 mm) |
| Leech | * 46.82 ft - (14271 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 47.1 ft - (14356 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 378.28 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 43.5 ft - (13259 mm) |
| Foot | 13.5 ft - (4115 mm) |
| Leech | 40.67 ft - (12396 mm) |
| Percentage LP | * 100.08 % |
| Length Perpendicular | * 12.61 ft - (3844 mm) |
| Deck Angle | * 4.89 ° |
| Area | * 274.17 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 43.21 ft - (13170 mm) |
| Foot | * 20.12 ft - (6133 mm) |
| Leech | * 40.93 ft - (12475 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.9 ft - (5761 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 408.3 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 43.21 ft - (13170 mm) |
| Foot | * 20.79 ft - (6337 mm) |
| Leech | * 39.75 ft - (12116 mm) |
| Perc LP | * 165 % |
| Area | * 674 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 43.21 ft - (13170 mm) |
| MidGirth | * 22.68 ft - (6913 mm) |
| Foot | * 22.68 ft - (6913 mm) |
| Perc LP | * 180 % |
| Area | * 833 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
