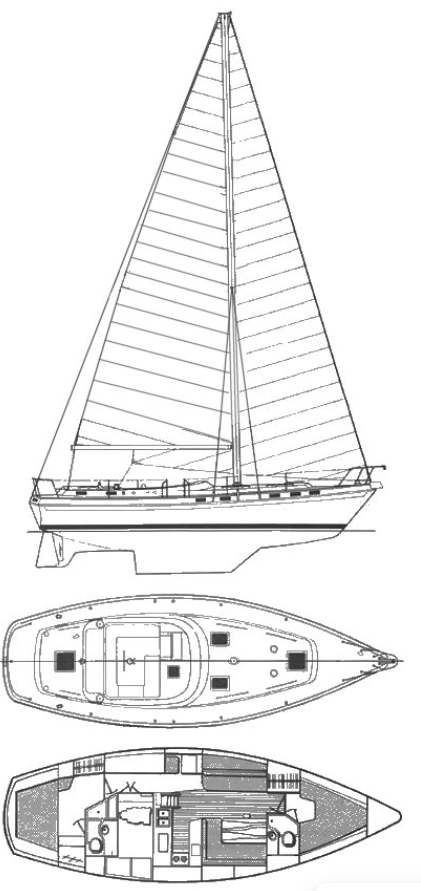

Morgan OI Classic 41
Description
The Morgan OI Classic 41 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 41.000 ft |
The standard boat dimensions
| i | 50.50 ft |
|---|---|
| j | 15 ft |
| p | 43.50 ft |
| e | 18.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 50.50 ft | 15 ft | 43.50 ft | 18.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 51 ft - (15545 mm) |
| Foot | 25.25 ft - (7696 mm) |
| Leech | 48 ft - (14630 mm) |
| Perc LP | * 165 |
| Area | * 966 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 49 ft - (14935 mm) |
| Foot | 24.75 ft - (7544 mm) |
| Leech | 46.5 ft - (14173 mm) |
| Percentage LP | * 154.53 % |
| Length Perpendicular | * 23.18 ft - (7065 mm) |
| Deck Angle | * 4 ° |
| Area | * 567.8 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 43.5 ft - (13259 mm) |
| Foot | * 18.5 ft - (5639 mm) |
| Leech-AftHdBd | * 46.39 ft - (14140 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 46.67 ft - (14225 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 411.77 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 50.05 ft - (15255 mm) |
| Foot | * 24.03 ft - (7324 mm) |
| Leech | * 47.31 ft - (14420 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 22.5 ft - (6858 mm) |
| Deck Angle | * 4 ° |
| Area | * 563.1 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 42.14 ft - (12844 mm) |
| Foot | * 19.64 ft - (5986 mm) |
| Leech | * 37.02 ft - (11284 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 17.25 ft - (5258 mm) |
| Deck Angle | * 12 ° |
| Area | * 363.5 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 49 ft - (14935 mm) |
| Foot | 22.5 ft - (6858 mm) |
| Leech | 46 ft - (14021 mm) |
| Percentage LP | * 140 % |
| Length Perpendicular | * 21 ft - (6401 mm) |
| Deck Angle | * 4.49 ° |
| Area | * 514.54 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 50.05 ft - (15255 mm) |
| MidGirth | * 27 ft - (8230 mm) |
| Foot | * 27 ft - (8230 mm) |
| Perc LP | * 180 |
| Area | * 1149 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
