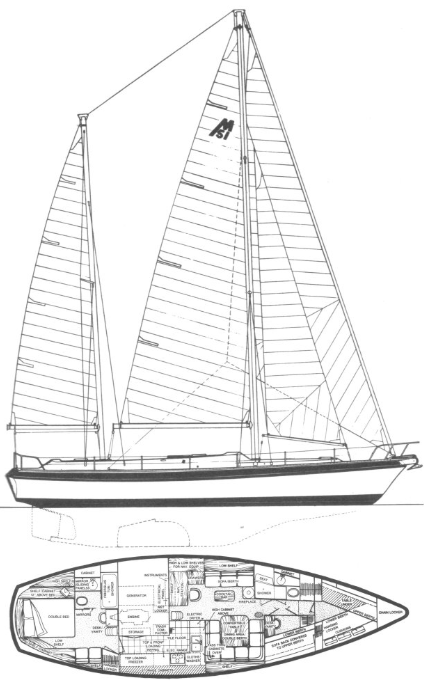

MORGAN OI 51 KETCH
Description
The MORGAN OI 51 KETCH is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 51.000 ft |
The standard boat dimensions
| i | 58 ft |
|---|---|
| j | 17.25 ft |
| p | 50 ft |
| e | 16.50 ft |
| p2 | 38 ft |
| e2 | 11 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 58 ft | 17.25 ft | 50 ft | 16.50 ft | 38 ft | 11 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 48.41 ft - (14755 mm) |
| Foot | * 22.59 ft - (6885 mm) |
| Leech | * 42.52 ft - (12960 mm) |
| Percentage LP | * 115.01 % |
| Length Perpendicular | * 19.84 ft - (6047 mm) |
| Deck Angle | * 12 ° |
| Area | * 480.22 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 38 ft - (11582 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech-AftHdBd | * 38.83 ft - (11835 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 39.19 ft - (11945 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 213.72 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 57.49 ft - (17523 mm) |
| Foot | * 28.46 ft - (8675 mm) |
| Leech | * 52.89 ft - (16121 mm) |
| Perc LP | * 165 |
| Area | * 1227 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 33.28 ft - (10144 mm) |
| Foot | * 12.72 ft - (3877 mm) |
| Leech | * 27.88 ft - (8498 mm) |
| Perc LP | * 60 |
| Length Perp | * 10.35 |
| Deck Angle | * 18.97 ° |
| Area | * 172.24 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 57.49 ft - (17523 mm) |
| Foot | * 28.69 ft - (8745 mm) |
| Leech | * 52 ft - (15850 mm) |
| Perc LP | * 150.03 |
| Length Perp | * 25.88 |
| Deck Angle | * 9.01 ° |
| Area | * 743.87 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 50 ft - (15240 mm) |
| Foot | * 16.5 ft - (5029 mm) |
| Leech-AftHdBd | * 51.83 ft - (15798 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 52.1 ft - (15880 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 423.18 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 57.49 ft - (17523 mm) |
| Foot | * 27.64 ft - (8425 mm) |
| Leech | * 54.34 ft - (16563 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 25.88 ft - (7888 mm) |
| Deck Angle | * 4 ° |
| Area | * 743.89 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 57 ft - (17374 mm) |
| Foot | 19.5 ft - (5944 mm) |
| Leech | 52 ft - (15850 mm) |
| Percentage LP | * 102.78 % |
| Length Perpendicular | * 17.73 ft - (5404 mm) |
| Deck Angle | * 8.03 ° |
| Area | * 505.32 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
